1-6KW Pure Sine Wave UPS Power Inverter with Visual Alarm

Minimum Order Quantity : USD1000 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: IG3115CL 1 - 6KW

Detail Information

High Light:

solar power inverter for home

,

home power inverter

Product Description

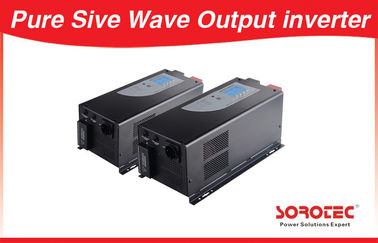

1-6KW Pure Sine Wave UPS Power Inverter  with Visual Alarm



Key Features:
Pure Sine wave Output
The charging current is big up to 70 A
Output Power Factor is 0.9-1
LCD display, audible and visual alarm
Full automatic and silent operation
Rack Tower design
Automatically charging
Auto change AC-DC
Automatically restart
Two-steps intelligent charging control to recharging time


Back Panel of Pure Sine Wave UPS Inverter:

ApplicationsSupply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)


Technical Specification of Pure Sine Wave Inverter IG3115 Series:

MODEL

Pure Sine wave Out
UPS Inverter

IG3115E
1000-12

IG3115E
1000-24

IG3115E
2000-12

IG3115E
2000-24

IG3115E
3000-12

IG3115E
3000-24

Input Voltage Waveform

Sinusoidal
(utility or generator)

Nominal Input Voltage

230Vac

Low Line Disconnect

184Vac±4%

High Line Disconnect

253Vac±4%

Max AC Input
Voltage

270Vrms

Nominal Input
Frequency

50Hz/ 60Hz
(Auto detection)

Over-Load Protection

(SMPS load)

Circuit breaker

Output Short
Circuit Protection

Circuit breaker

Efficiency
(Line Mode)

>95%

Transfer
Switch Rating

30A

Transfer Time

(Ac to Dc)

20ms (typical)

Output Voltage
Waveform

Pure Sine wave

Rated Output
Power (W)

1000W

1000W

2000W

2000W

3000W

3000W

Power Factor

0~1.0

Nominal Output
Voltage (V)

230Vac

Output Voltage
Regulation

±10% rms

Nominal Efficiency

>80%

Nominal DC
Input Voltage

12V

24V

12V

24V

12V

24V

Nominal Charge
Current

70A

35A

70A

35A

70A

35A

Charge Current
Regulation

± 5Adc

Battery
initial voltage

0-15.7 Vdc (can operate with 0V battery)

Communication:

RJ11 (Used for factory testing. No customer interface available)

Safety Certification

Compliance with UL458

CE(EN60950)

EMI Classification

FCC,  CLASS A

EN50091-2,
CLASS A

Operating
Temperature Range

0°C to 40°C

Storage temperature

-15ºC   60ºC

Operation humidity

5% to 95%

Audible Noise

60dB max

Cooling

Forced air,  variable
speed fan

Size

381mm*217mm*179mm
