RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase

China RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase supplier
RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase supplier RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase supplier

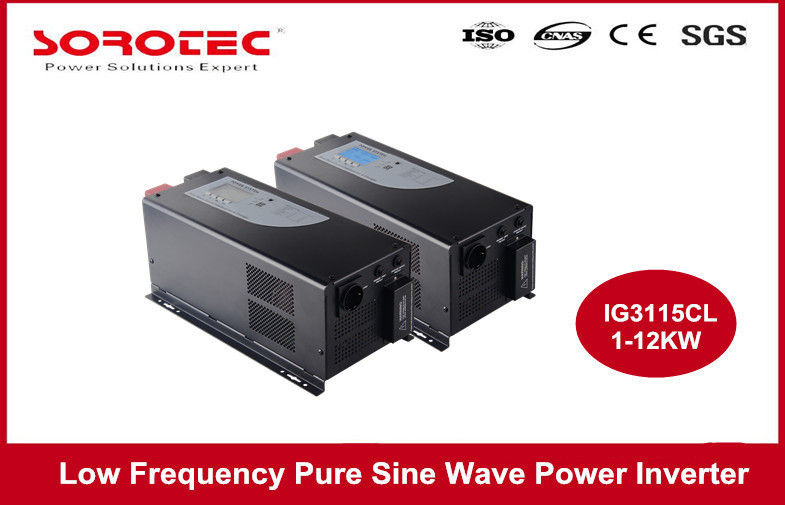

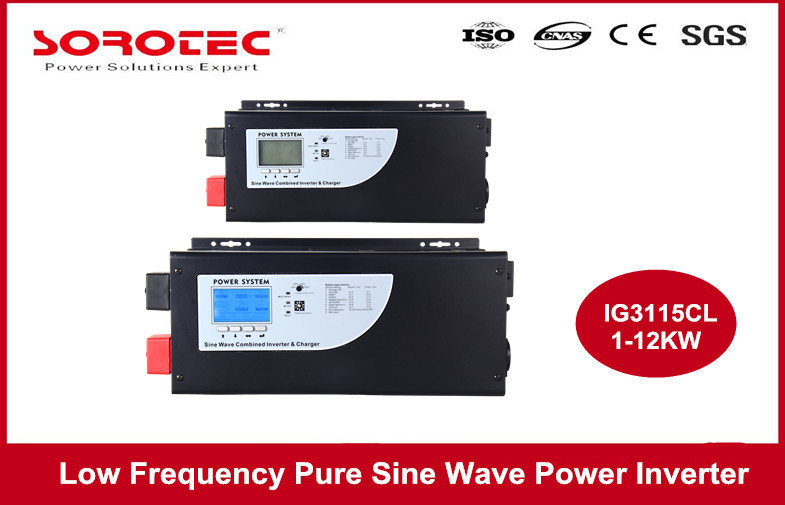

Large Image :  RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: IG3115CL 1 - 6KW

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS (Inverter Sample Are Available)
Price: Price Negotiable
Packaging Details: Standard Exported Cartons and Pallets for pure sine wave power inverter
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Low Frequency Inverter: Power Inverter For Home Use Phase: Single Phase
Wave Form: Pure Sine Wave Color: Black
Capacity: 1000-6000W Power Factor: 0.9/1.0
Frequency: 50/60hz Nominal Voltage: 220/230/240VAC

RS232 Black Color Off-Grid Power Inverter,Uninterrupted Power Supply for Home Appliances



1Ph in/1Ph out Pure Sine Wave Power Inverter,Low Frequency design with transformer,provide reliable long backup time power for home and office appliances.





Specifications:

LCD display/Pure Sine wave Output/Bypass Function/Remote Control/Accept Generator Output;Battery Type /Battery Temperature Sense /Output Socket Optional;Output Power Factor 0.9/1.0 Optional,Output voltage and frequency can be set





Key Features:



1.Pure sine wave output
2.The charging current is big up to 85 Amp
3.Output power factor is 0.9-1
4.Output socket optional
5.Battery type can be select
6.Output voltage and frequency can be set
7.Charge current can adjust
8.Battery temperature sense optional
9.Connect to generator restart function
10.Well accept generator’s output
11.Full automatical and silent operation
12.Automatically transfer between battery and line modes
13.Microprocessor control guarantees high reliability
14.Remote control function
15.Four-steps intelligent charging control to recharging time
16.Bypass function





Applications:

Supply the reliable long back up time power for the home appliances and office appliances and solar power systems etc.



Technical Specification of Pure Sine Wave Inverter IG3115c Series:

MODEL IG3115CL 1-6KW Pure Sine wave Output Inverter
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Input  Wave form Sine wave (utility or generator)
Nominal Voltage 230Vac (120Vac optional)
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage re engage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage re engage 135v ±4% & 243v±4%
Nominal Input Frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz~65Hz
Output Wave form (Bypass mode)same as input
Efficiency on line transfer mode ≥95%+
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter specification/output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000
Output continuos power VA 1000 1500 2000 3000 4000 5000 6000
Power factor 0.9-1.0
Nominal Output Voltage rms 230Vac (120Vac optional)
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification >88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000
Short circuit protection Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage 12V/24V/48V
Minimum start voltage 10V/20V/40V
Low battery alarm 10.5V/21V/42V
Low battery trip 10V/20V/40V
High voltage alarm 16V/32V/64V
Power saver Same switched on/off on remote
Charger mode specification
Output voltage Dependent on battery type
Charge current 0-85A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for    96v)
Over charge protection shutdown 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Charger curves(4stage constant curren) battery types
4 step digital controlled progressive charge
Battery type Fast V        Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A 14                       13.7
A.G.M. 1 14.1                    13.4
A.G.M. 2 14.6                    13.7
Sealed lead acid 14.4                    13.6
Gel euro 14.4                    13.8
Open lead acid 14.8                    13.3
Calcium 15.1                    13.6
De-sulphation 15.5 for 4 hrs
Remote control/RS232/USB Yes. Optional



RS232 Black Color Power Inverters / Off Grid Power Inverter Single Phase
