Wall Mounted Integrated Solar Power Inverter SSP3119C 1-5KW With Energy Storage

Minimum Order Quantity : 1PCS Solar Inverter Available Price : Negotiable Price
Packaging Details : Standard Exported Cartons and Pallets for Solar Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit for Solar Inverter
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Solar Inverter Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA Solar Inverter

Detail Information

Product Name: Wall Mounted Integrated Solar Power Inverter Color: White Color
Parallel Function: 3~5KVA Power Factor: 1.0
Frequency Range: 50HZ/60HZ Output Wave Form: Pure Sine Wave
Humidity: 0-90%RH (No Condengsing) Operating Temperature: 0 To 50 ℃

Product Description

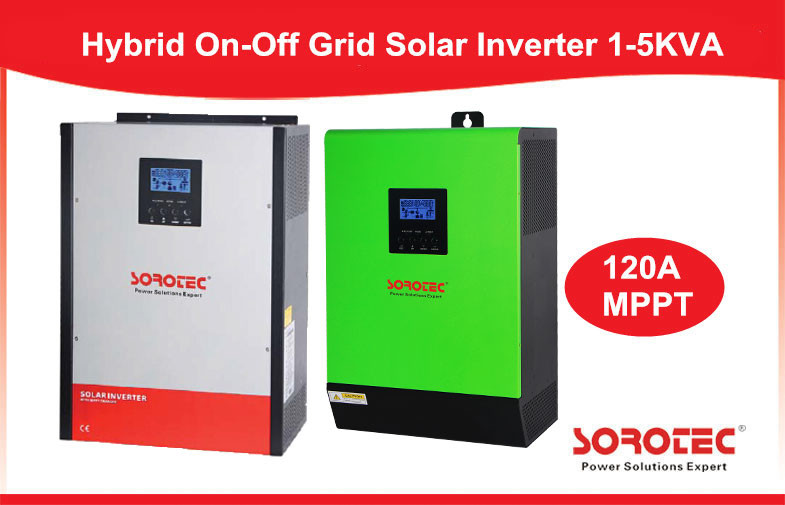

Wall Mounted Integrated Solar Power Inverter SSP3119C 1-5KW With Energy Storage



On/Off Grid Hybrid Solar Inverter with 120A MPPT for self-consumption and feed-in to the grid,3K/4K/5K with parallel function SSP3119C 1000-5000VA



SSP3119C Product snapshot

1.Parellel operation up to 6 units only for 3K/4k/5k models

2. Single phase output up to 30KW using 6 units

3.Three phase output using either 3 units (15KW) OR MAX 6 units (30KW)

4.Built-in MPPT Solar controller

5.On-Grid Inverter With Energy Storage



Key Features:

1.Pure sine wave output

2.Self-consumption and Feed-in to the grid

3.Programmable supply priority for PV, Battery or Grid

4.User-adjustable charging current and voltage

5.Monitoring software for real-time status display and control

6.Parallel operation up to 6 units only for 3K/4K/5K models

7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



Technical Specification



MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃



Wall Mounted Integrated Solar Power Inverter SSP3119C 1-5KW With Energy Storage



Company profiel

Shenzhen SORO Electronics Co., Ltd is a professional UPS manufacturer in the field of UPS power for over 10 years. We have two large production sites in Zhejiang and Shenzhen. SORO has been a leading enterprise in the UPS industry in China.



Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy, technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.
