Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS Solar Inverter Available | Price : | Negotiable Price |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Solar Inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit for Solar Inverter |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Solar Inverter Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3119C 1000-5000VA Solar Inverter |
|
Detail Information |
|||
| Product Name: | 1000W Pure Sine Wave Solar Inverter | Color: | Green Color |
|---|---|---|---|
| Parallel Function: | 3~5KVA | Power Factor: | 1.0 |
| Frequency Range: | 50HZ/60HZ | Output Wave Form: | Pure Sine Wave |
| Humidity: | 0-90%RH (No Condengsing) | Operating Temperature: | 0 To 50 ℃ |
| Conmmunication: | USB Or RS232/Dry-contact | ||
| High Light: | solar power inverter for home,home power inverter |
||
Product Description

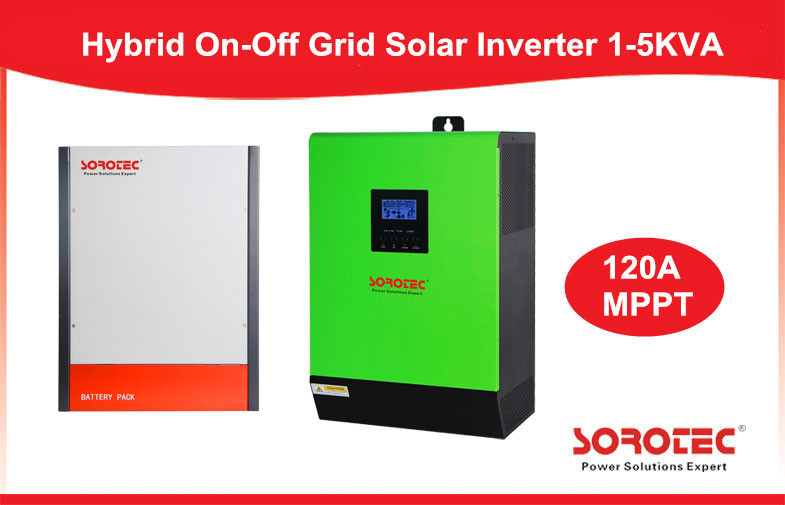

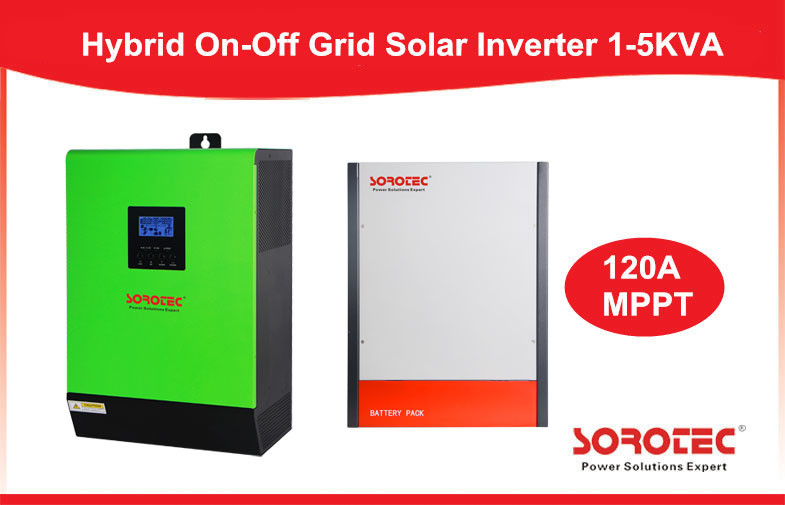

Built -in MPPT Solar Charge Controller1000W Pure Sine Wave Solar Inverter
Wall Mounted Integrated Solar Power Inverter SSP3119C 1-5KW With Energy Storage
Quick Detail:
On-Grid Inverter with Engergy storage
Nominai Voltage 220/230/240 VAC
Nominal Frequency 50/60HZ
Single phase output to 30KW using 6 units
Operating Temperature 0-50℃
Key Features:
1.Wall mounted Integrated Solar Power Inverters
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.off-grid and grid-tie with backup,Programmable multiple operation modes: Grid-tie,
Technical Specification
| MODEL | 1K-12 | 2K-24 | 3K-48 | 4K-48 | 5K-48 |
| Max.PV Array Power | 1000W | 2000W | 4000W | 4000W | 6000W |
| Rated Output Power | 1000W | 2000W | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | 145VDC | 145VDC | 145VDC |
| MPPT Range @ Operating Voltage | 15~115VDC | 30~115VDC | 60~115VDC | 60~115VDC | 60~115VDC |
| MPPT Tracker Number | 1 | 1 | 1 | 1 | 2 |
| GRID-TIE OPERATION | |||||
| GRID OUTPUT(AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Voltage Range | 184-264.5VAC | ||||
| Nominal Output Current | 4.3A | 8.7A | 13A | 17.4A | 21.7A |
| Power Factor | >0.99 | ||||
| Efficiency | |||||
| Maximum Conversion Efficiency (DC/AC) | 90% | ||||
| GRID INPUT | |||||
| Accepatable Input Voltage Range | 90-280VAC or 170-280VAC | ||||
| Frequency Range | 50HZ/60HZ(Auto sensing) | ||||
| Maximum AC Input Current | 30A | 40A | |||
| BATTERY MODE OUTPUT(AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Waveform | Pure Sine Wave | ||||
| Efficiency(DC to AC) | 93% | ||||
| BATTERY&CHARGER | |||||
| Nominal DC Voltage | 12VDC | 24VDC | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charge Current | 80A | 80A | 80A | 80A | 120A |
| Maximum AC Charge Current | 60A | ||||
| Maximum Charge Current | 140A | 140A | 140A | 140A | 180A |
| INTERFACE | |||||
| Parallel Function | N/A | N/A | Yes | Yes | Yes |
| Communication | USB or RS232/Dry-Contact | ||||
| ENVIRONMENT | |||||
| Humidity | 0~90%RH (No condensing) | ||||
| Operating Temperature | 0 to 50℃ | ||||
Company profiel
Shenzhen SORO Electronics Co., Ltd is a professional UPS manufacturer in the field of UPS power for over 10 years. We have two large production sites in Zhejiang and Shenzhen. SORO has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy, technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.
