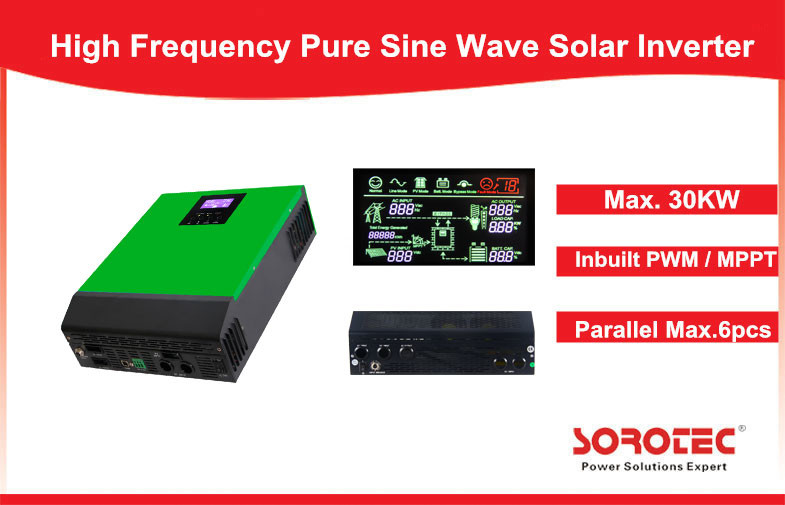

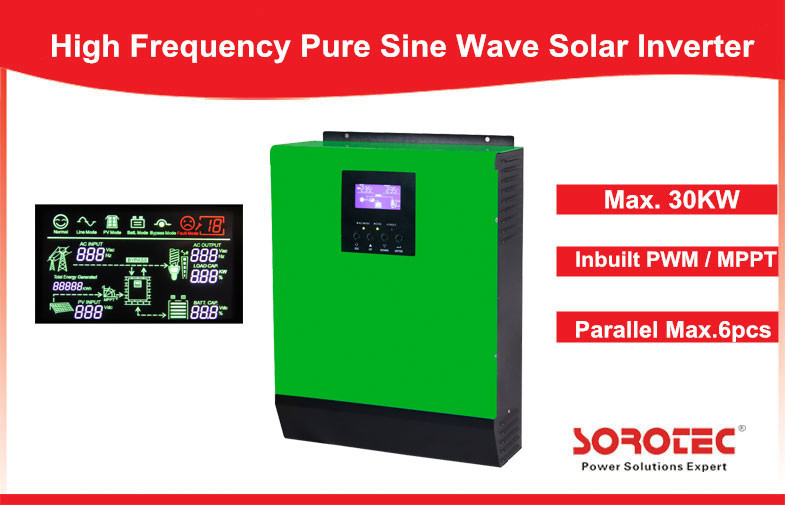

1Ph in / 1Ph Out Solar Power Inverters System high power with Heat Sink , 1- 5KVA Capacity

Minimum Order Quantity : 5PCS Solar Power Inverters Price : Negotiable Price
Packaging Details : Standard Exported Cartons and Pallets For Solar Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, L/C, T/T Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3118C1 1- 5KVA

Detail Information

Product Name: Solar Power Inverter System Capacity: 1- 5KVA
Solar Controller: PWM Application: Solar Power
Power Factor: 0.8 Weight: 9.8KG
Wave Form: Pure Sine Wave Display: LCD Display

Product Description

2kVA / 1600W 1Ph in / 1Ph Out Solar Power Inverter System with Heat Sink



Product description:

1.Pure sine wave,Cold start function.

2.Auto restart while AC is recovering.

3.Optional remote panel available.

4.Smart battery charger design for optimized battery performance.



Function Description:

Single phase output up to 24KW using 6 units.



Three phase output using either 3 units (12KW)or max 6 units(24KW).



Configurable AC/Solar iput priority via LCD setting.



Hybrid Off-Grid Solar Power Inverters



Built-in MPPT/PWM solar controller



Support mains voltage or generator power



Auto restart while AC is recovering



6 units can Parallel operation only for 4Kva/5Kva



Cold start function,Remote panel available



Selectable charging current based on application



Selectable input voltage range for home appliances and personal computers



Full protection:

Low battery voltage protection

Over load protection

Output short circuit

Over- temperature

Restrain surge interference

Eliminate noise protection for thunder striking,provide the reliable power to the home appliances.



SSP3118C1 series is a multi-function off-grid type solar power inverter for self- consumption,which capacity from 1kva to 5kva,built-in with PWM solar charge controller, 4KVA/5KVA with max up to 6 units solar inverters parallel function and total capacity 24KW. It power sourcing from Utility,battery ,PV.And supports charging priorities for Utility, PV, Utility & PV.Remote control with RS232/USB,LCD display information in real-times. widely used to provide the reliable and long time backup power supply for home office appliances and solar power systems



Technical Specification of SSP3118C1 Series Solar Power Inverters:

MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C



WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

1Ph in / 1Ph Out Solar Power Inverters System high power with Heat Sink , 1- 5KVA Capacity



FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
