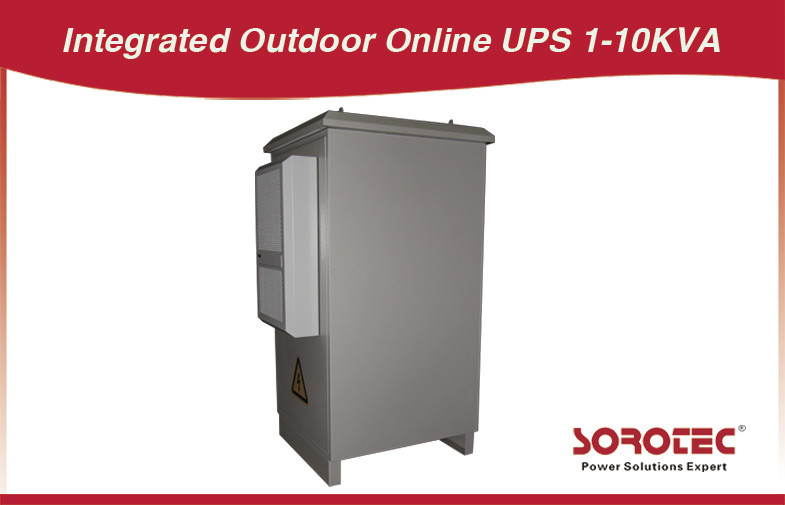

1000KVA / 8000W load 4A 50hz Outdoor UPS HW9110E for outside communications

HW9110E  1-10KVA

1KVA

2KVA

3KVA

6KVA

10KVA

Capacity

1KVA/800W

2KVA/1600W

3KVA/2400W

6KVA/4800W

1000KVA/8000W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60HZ

Input

Voltage Range

115～295VAC(±3VAC)

176～297VAC(±3VAC)

Frequency Range

50HZ:(46～54HZ)；60HZ:(56HZ～64HZ)

Power Factor

0.98

Output

Voltage Precision

220/230/240X (1±2%)VAC

Frequency Precision

50/60HZ±0.05Hz

Power Factor

0.7/0.8(optional)

Wave Distortion

Linear load ＜3%        Non-linear load ＜6%

Overload capability

Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.

Crest factor

3:1

Transfer Time

0ms(AC to DC )

Battery

DC supply voltage

36VDC

96VDC

96VDC

240VDC

240VDC

Charge current

4A/8A(optional)

4A/8A(optional)

4A/8A(optional)

4.2A

4.2A

Internal battery capacity

(38/65/80/100AH)optional

Panel display

LCD

Display input and output voltage, frequency, battery voltage, battery capacity, load percentage

Communications

communicate interface

RS232, SNMP card(optional)

Work environment

Temperature

0～40℃

Humidity

0～95% Non-condensing

Storage temperature

-25℃～55℃

Elevation

< 1500m

Acoustic Noise ( within 1 meter)

＜50dB

Physical Characteristics

Weight(KG)

85

125

125

150

155

Dimensions      (W x D x H )mm

640×900×900

640×900×1185

640 ×900×1185

940×940×1770

940×940×1770
