240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank

Minimum Order Quantity : 1PCS Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HW9110E 1-10KVA

Detail Information

High Light:

ups power backup

,

ups power back up

Product Description

240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank





Key Features

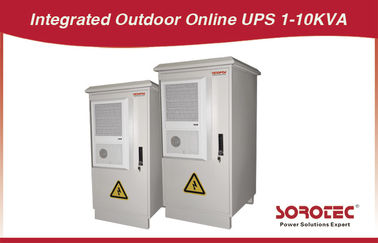

SORO Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.

Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.





Applications
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-40 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.







Technical Specifications of Outdoor UPS HW9110E Series


Model

HW9110E  1-10KVA

1KVA

2KVA

3KVA

6KVA

10KVA

Capacity

1KVA/800W

2KVA/1600W

3KVA/2400W

6KVA/4800W

1000KVA/8000W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60HZ

Input

Voltage Range

115~295VAC(±3VAC)

176~297VAC(±3VAC)

Frequency Range

50HZ:(46~54HZ);60HZ:(56HZ~64HZ)

Power Factor

0.98

Output

Voltage Precision

220/230/240X (1±2%)VAC

Frequency Precision

50/60HZ±0.05Hz

Power Factor

0.7/0.8(optional)

Wave Distortion

Linear load <3%        Non-linear load <6%

Overload capability

Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.

Crest factor

3:1

Transfer Time

0ms(AC to DC )

Battery

DC supply voltage

36VDC

96VDC

96VDC

240VDC

240VDC

Charge current

4A/8A(optional)

4A/8A(optional)

4A/8A(optional)

4.2A

4.2A

Internal battery capacity

(38/65/80/100AH)optional

Panel display

LCD

Display input and output voltage, frequency, battery voltage, battery capacity, load percentage

Communications

communicate interface

RS232, SNMP card(optional)

Work environment

Temperature

0~40℃

Humidity

0~95% Non-condensing

Storage temperature

-25℃~55℃

Elevation

< 1500m

Acoustic Noise ( within 1 meter)

<50dB

Physical Characteristics

Weight(KG)

85

125

125

150

155

Dimensions      (W x D x H )mm

640×900×900

640×900×1185

640 ×900×1185

940×940×1770

940×940×1770

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice.





Network Management humanity

To the users, LCD display panel provide accurate work environment and status information for UPS.Fault information can be displayed, can quickly determine the reasons for UPS fault and fault location, so UPS maintenance more quickly and conveniently.

With the UPS through RS232 interface, intelligent control software to communicate with the computer, and the various parameters of UPS clear displayed on the communications interface. By setting, the computer can carry out a variety of functions of UPS direct control.

Optional SNMP adapter, can realize remote network management, provide real-time UPS date and power information through a variety of network operating system for communication and management





High Reliability of the UPS System
Using microprocessor control, directly produce high-frequency pulse width modulation wave (SPWM) control of the UPS inverter, to simplify the UPS control circuit, to improve the stability, to have more real-time UPS to quickly respond to changes in the external environment and guarantee the machine's control circuit is more simple and reliable.

Using digital control techniques, to avoid the traditional analog control temperature drift inherent defects such as hardware parameters, to ensure consistency and reliability of UPS.





Fine dust-proof, water-proof features
According to the overall standard of design dust-proof and water-proof IP55
With a sun protection, heat insulation, roof ventilation
With waterproof and the filtration dust inlet; the cabinet front door shutters with waterproof design, on the back of welding water tank, water tank installed above the net with quick release feature of the dust.
240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 0



Security features
Solid chassis box                Fixed base case
240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 1


Environmental adaptability
Wide input voltage, avoids frequent switching to battery power because of large power grid voltage, reduce battery failure probability, adapt to the power environment in poor areas.
240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 2





Inner Structure of outdoor UPS HW9110E 1-10KVA:

240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 3240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 4 240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS of welding water - proof tank 5
