USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2 | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T, |
| Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9335C Plus 10-30 KVA |
|
Detail Information |
|||
| Phase: | Three Phase With Ground | Power Factor: | ≥ 0.99 At 100% Load |
|---|---|---|---|
| Output Voltage: | 208/220/230/240VAC(Ph-N) | AC Voltage Regulation: | ± 1% |
| Frequency Range (Synchronized Range): | 46Hz ~ 54 Hz @ 50Hz System ; 56Hz ~ 64 Hz @ 60Hz System | Frequency Range (Batt. Mode): | 50 Hz ± 0.1 Hz Or 60Hz ± 0.1 Hz |
| Current Crest Ratio: | 3:1 Max | Harmonic Distortion: | ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load |
| Operation Temperature: | 0 ~ 40°C (the Battery Life Will Down When > 25°C) | Operation Humidity: | <95 % And Non-condensing |
| Highlight: | backup power supply,uninterruptable power supply |
||
Product Description

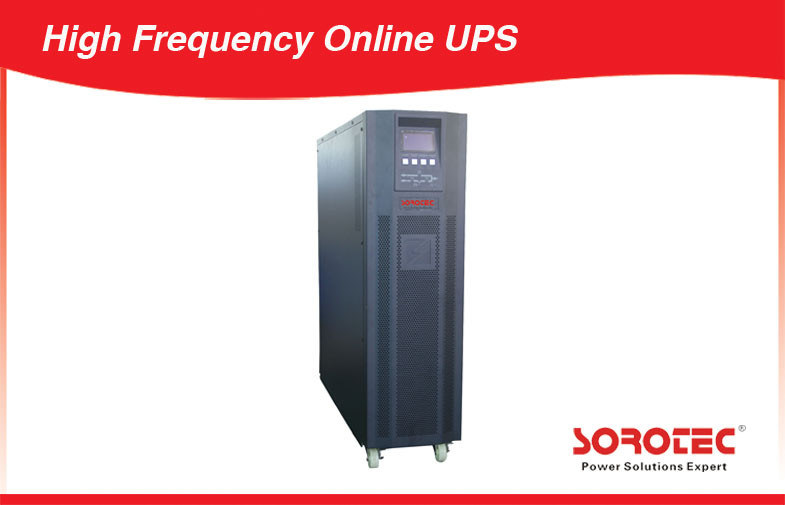

3Ph in / 3Ph out High Frequency Online UPS HP9335C Plus Series 10 KVA
Key Features:
1. Generator compatible
2. True double-conversion
3. Output power factor 0.9
4. Accepts dual-mains inputs
5. Compact Design, Lower Noise
6. Maintenance bypass available
7. Optional N+X parallel redundancy
8. N+X Parallel Redundancy Optional
9. Emergency power off function (EPO)
10. 50Hz/60Hz frequency converter mode
11. ECO mode operation for energy saving
12. Wide input voltage range (110-300 VAC)
13. Active power factor correction in all phases
14. Full DSP control of high stability, reliability and safety.
15. Humanistic LCD panel information.RS232 communication interface
16. 3-stage extendable charging design for optimized battery performance
17. Optional isolation transformer offers full isolation and complete common mode noise rejection
Reduce the investment cost saving valuable space:
HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.
Technical Parameters
| MODEL | HP9335C Plus 10KVA | ||||||||
| 10K | 10K-XL | ||||||||
| CAPACITY | 10KVA / 9KW | ||||||||
| PHASE | 3 Phase with Neutral | ||||||||
| INPUT | |||||||||
| Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load | |||||||
| Low Line Comeback | Low Line Loss Voltage + 10V | ||||||||
| High Line Loss | 300 VAC(Ph-N) ± 3 % | ||||||||
| High Line Comeback | High Line Loss Voltage - 10V | ||||||||
| Phase | Three phase with ground | ||||||||
| Power Factor | ≥ 0.99 at 100% Load | ||||||||
| OUTPUT | |||||||||
| Output voltage | 208/220/230/240VAC(Ph-N) | ||||||||
| AC Voltage Regulation | ± 1% | ||||||||
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system | ||||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||||||||
| Overload | AC mode | 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec | |||||||
| Battery mode | 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec | ||||||||
| Current Crest Ratio | 3:1 max | ||||||||
| Harmonic Distortion | ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load | ||||||||
| Transfer Time | Line←→Battery | 0 ms | |||||||
| Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) | ||||||||
| Line←→ECO | <10 ms | ||||||||
| EFFICIENCY | |||||||||
| AC mode | > 89% | > 89% | > 89% | > 90% | |||||
| Battery Mode | > 86% | > 88% | > 87% | > 89% | |||||
| BATTERY | |||||||||
| Standard Model | Type |
12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | ||||
| Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) | |||||
| Recharge Time | 9 hours recover to 90% capacity | ||||||||
| Charging Current | 1.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| Long-run Model | Type | Depending on applications | |||||||
| Numbers | 18-20 | ||||||||
| Charging Current | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| PHYSICAL | |||||||||
| Standard Model | Dimension,DxWxH(mm) | 832 X250X894 | 832 X250X1275 | ||||||
| Long-run Model | Dimension,DxWxH(mm) | 609 X250X768 | 832 X250X828 | ||||||
| ENVIRONMENT | |||||||||
| Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) | ||||||||
| Operation Humidity | <95 % and non-condensing | ||||||||
| Operation Altitude | <1000m | ||||||||
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | |||||||
| MANAGEMENT | |||||||||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||||||
| USB | Power management from SNMP manager and web browser | ||||||||
