USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 1PCS | Packaging Details : | Standard Exported Cartons and Pallets |
---|---|---|---|
Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | 30% TT in advance, the balance before shipping |
Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Place of Origin: | China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,ISO9000 | Model Number: | HP9316C 10 - 20KVA |
Detail Information |
|||
Highlight: | backup power supply,uninterruptable power supply |
---|
Product Description

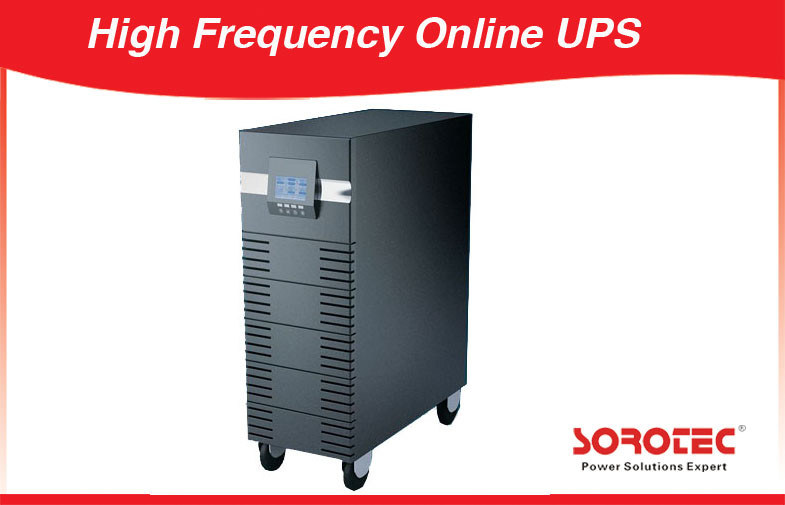

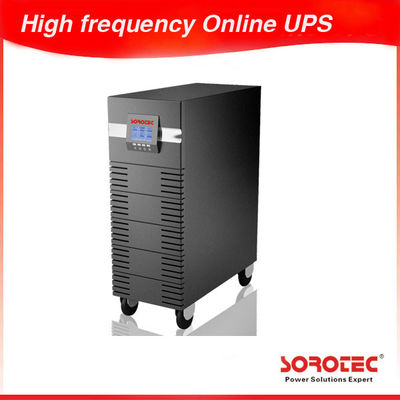

Large LCD Online UPS HP9316C 10-20KVA
Key Features:
●Large blue back light LCD for detailed Real-time UPS status display.
● Advanced online pure sine wave power supply system, with bypass repair switch, It can
provide a reliable,high quality AC power source to the precision equipments,can be used widelyin different fields.
● Widely used to computer equipments,telecommunication systems and Industrial automatic control equipments.
● Truly online design,different from offline,it can adjust the input voltage, filtering,when the AC break off,the UPS will provide an uninterruptible power source from the backup batteries.
● UPS will change to bypass mode when overloading or inverter fault,when overloading remov, UPS will turn to inverter mode automatically.
● N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
Trendy & Elegant LCD Design for real-time UPS system information:
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Technical Specifications of Online UPS HP9316C 10-20K (3Ph in/1Ph out)
Model |
HP9316C 10-20KVA |
||||||
10KT-XL |
15KT-XL |
20KT-XL |
|||||
Rated Power |
10KVA/7000W |
15KVA/10500W |
20KVA/14000W |
||||
Rated Voltage |
380VAC 3phase with ground |
||||||
Rated Frequency |
50/60HZ |
||||||
Input |
|||||||
Voltage Range |
304~478VAC(±3VAC) |
||||||
Frequency Range |
50HZ:(46~54HZ);60HZ:(56HZ~64HZ) |
||||||
Power Factor |
0.98 |
||||||
Output |
|||||||
Voltage Regulation |
208/220/230/240X (1±2%)VAC |
||||||
Frequency Regulation |
50/60HZ±0.05 Hz |
||||||
Power factor |
0.7 |
||||||
Voltage distortion |
Linear load<3% Non-Linear load<6% |
||||||
Overload Capability |
110%~150% for 30s change to bypass model,Recover after load normal |
||||||
Current Crest Ratio |
3:1 |
||||||
Transfer time |
0ms(AC mode→ Battery mode) |
||||||
Battery |
|||||||
DC Voltage |
240VDC |
||||||
Recharge Current |
4.2A |
||||||
Display |
|||||||
LCD |
Display input/output Voltage, Frequency, |
||||||
Communication |
|||||||
Interface |
Smart RS232, SNMP(optional) , USB(optional) |
||||||
Environment |
|||||||
Operation Temperature |
0~40℃ |
||||||
Humidity |
0~95% non-condensing |
||||||
Storage Temperature |
-25℃~55℃ |
||||||
Sea level elevation |
<1500m |
||||||
Noise Level(1m) |
<55dB |
||||||
Physical Characteristic |
|||||||
Weight(KG) |
N.W. |
47 |
54 |
54 |
|||
G.W. |
53 |
60 |
60 |
||||
Dimension(D x W x H)mm |
570 X260 X717 |
Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
