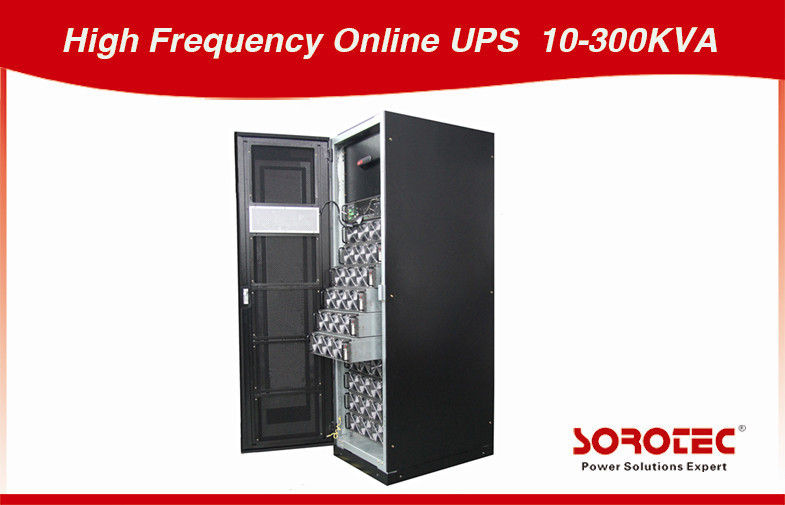

Large Power Uninterrupted Power Supply High Frequency Online Modular UPS 10-300KVA

Minimum Order Quantity : 2PCS Modular UPS Price : 1-10000 USD
Packaging Details : Wooden Packing for Modular UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month for Modular UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: MPS9335C 10-300KVA Modular UPS

Detail Information

Product: Online Modular UPS Capacity: 10-300KVA
Waveform: Pure Sine Wave Phase: 3Ph In/3Ph Out
Output Power Factor: 1.0 Frequency: 50/60HZ
Nominal Voltage: 380/400/415VAC Application: Industry UPS
Parallel Mode: N+X
High Light:

backup power supply


uninterruptable power supply

Product Description

Large Power Uninterrupted Power Supply High Frequency Online Modular UPS 10-300KVA



Superior energy saving and environment-friendly:

Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%


Superior capability of powering load:

Output PF is 0.9, no need of power deration with load of leading or lagging PF



Top or bottom cabling, no need of input cabling cabinet.



Full front access, UPS, failed part can be replaced shortly



The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.


6-inch extra large LCD that can display 12 language

Chinese,English , Russian , Spanish , French and so on.







Key Features:


1.  Each UPS modules provide 4.5kw charge capacity,equal to 10to 20A


2.  UPS power module supporting hot swappable,capacity upgrade extramely simple


3.  Intelligent battery management maintains battery automatically to prolong the battery life


4.  Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges


5.  The machine system for modular structure ,consist of 1 to 10 modulaes biggest module is 30kw


6.  Super Ability for overload and short circuit,ensure the system stability and safety under the limit state of system


7.  Advanced DSP full digital control technologies realize higher system stability,online capacity expansion and maintenance


8.  Advanced didtributed active parallel technology realize parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet






Application IDC(Internet Data Center),computer center,ISP(Internet Service Provider),Telecom,Finance bank and securities,Tax,hospital system,industrial automation,precision equipment,etc



Technical Specifications of Modular UPS, MPS9335 10-300KVA:

Model MPS9335 10-300KVA
Capacity 10-300KVA
Main input
Input voltage 380V/400V/415AC(Optional South America 208v)
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0. 98
THDi THDi <3%
Input power soft-start fantion 5-30s settable
Input Voltage Ranges 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery Voltage ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy ± 1%
Bypass Input voltage 380/400/415VAC 3-phase 4-wire
Voltage Ranges Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ± 0.5%(balanced load), ± 1% (unbalanced load)
THDi THD<1%(linear load), THD<3%(nonlinear load)
Power Factor 0.9
Three Phase Angle accuracy 120°c ± 0.5°c
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms(ECO Mode)
Frequency 50Hz/60Hz (Settable)
Mains synchronization range ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Communication Ports RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency > 96% at load above 50%, >95% at load above 25%
Operation Temperature 0-40 °c
Storage Temperature -25 °c -70 °c (without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
  5 module cabinet module :RMS050/10, RMS100/20, RMS150/30 150KG
  10 module cabinet module :RMS100/10, RMS200/20, RMS300/30 150KG
  module :PM10 10KVA power module :20KG
Weight module :PM20 20KVA power module :21KG
  module :PM30 30KVA power module :32KG
Dimendion(W XD XH)mm 5 module cabinet 600X1400X850
10 module cabinet 600X2070X850
power module 440X132X660(10KVA/20KVA/30KVA)
