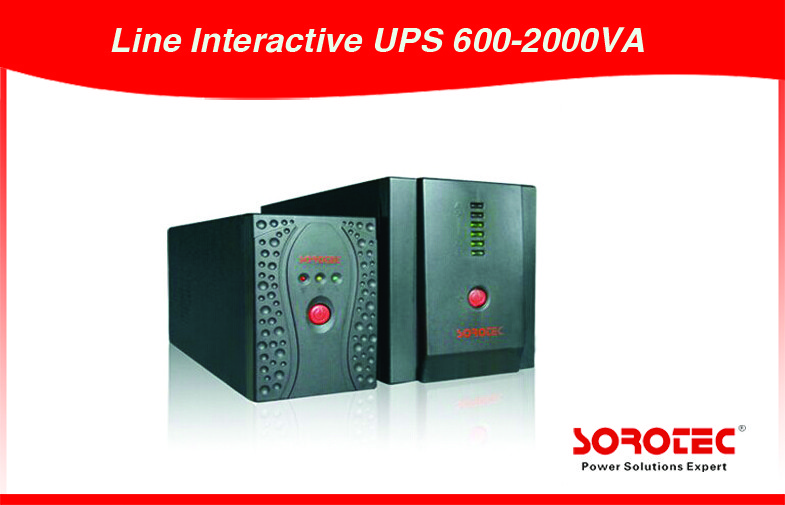

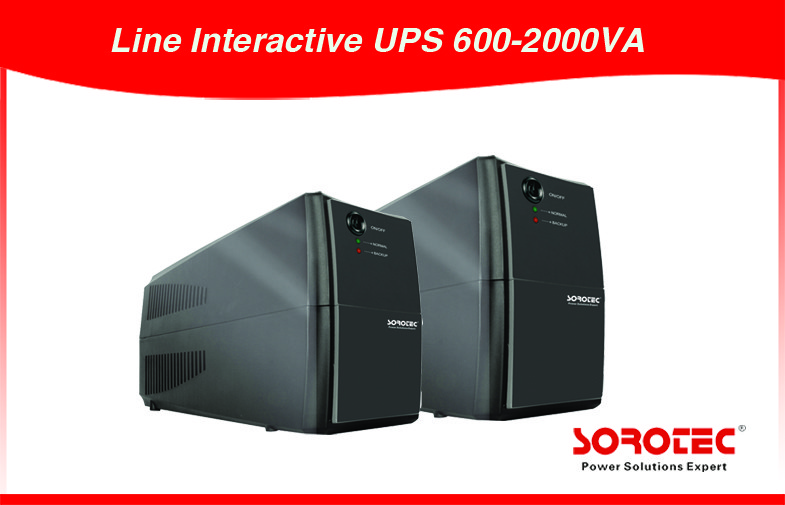

Modified Sine Wave Line Interactive UPS Uninterrupted Power Supply 600VA/360W /12V/7Ah

Minimum Order Quantity : 5PCS Price : USD100/PCS
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Supply Ability : 10000PCS/Month for line Interactive UPS
Place of Origin: Shenzhen,China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: HP5110E 600-2000VA

Detail Information

Product: Uninterrupted Power Supply Type: Line Interactive UPS
Waveform: Modified Sine Wave Rated Power: 600VA/360W
Output Voltage: 208/220/230/240VAC±10% Frequency: 50/60HZ
Transfer Time: Typical 5ms Display: LCD Or LED
Battery Voltage: 12V/7Ah*1pcs Software Monitoring System: Yes
Battery: User-replace Output Power Factor: 0.6
High Frequency UPS: Yes Weight: 6KG
DIMENSIONS:W*D*H: 330*100*140MM OEM/LOGO: Allowed
High Light:

backup power supply


ups power supply

Product Description

Modified Sine Wave Line Interactive UPS Uninterrupted Power Supply 600VA/360W /12V/7Ah



►Quick Detailes

Model:HP5110E Series Line Interactive UPS

Capacity: 600-2000VA

Nominal Voltage:220/230/240VAC

Nominal Frequency:50/60HZ

Output Power Factor:0.6

Application:Personal computer,workstations,POS systems.etc





Key Features

1. Microprocessor control guarantees high reliability

2. Advanced line-interactive design

3. Intelligent voltage regulation technique

4. Intelligent charging technique

5. User-replaceable battery design

6. Complete soft ware monitoring system



Modified Sine Wave Line Interactive UPS Uninterrupted Power Supply 600VA/360W /12V/7Ah 0



Well-adapted to the environment
Wide input voltage range 165V±5V-275V±5V, avoid switching to the AC model frequently, extend the useful life of the battery , reduce the cost of changing battery , adapted to the environment where the power system is bad.


Load safely
Automatically regulate the voltage, ensure the load work under safe voltage range


DC START function
Built-in DC start function enables UPS to be started up without AC Power supplied


Strong electromagnetism compatibility
Adopted the advanced wide range frequency input technique, frequency range 40-70Hz, enable the UPS work normally when the AC frequency drifts. Provides the UPS with better compatibility with various generators and reduce the cost for purchasing generator.


High Optimizing Performance for battery
Advanced battery management, Automatically regulate the cut-off voltage of the battery according to the load capacity. Extending the useful life of the battery and improving the UPS efficiency.


Unattended Mode function
When the UPS cut off in low battery voltage which caused by AC fault , it will automatically charge the battery when the AC recover, this function will protect the battery effectively, extend the useful life of the battery and can recover the battery back-up time in a short time


Full protection
Protection for low battery voltage, over load, output short circuit and over- temperature. Restrain surge interference, eliminate noise, protection for thunder striking. Reduce the risk of damaging customer’s equipment and the loss of losing data; Save the cost and time for maintainance.





Technical Specifications of line interactive UPS HP5110E 600-2000VA

HP5110E 600-2000VA
600VA 800VA 1000VA 1400VA 2000VA











Nominal voltage 220/230/240VAC
Nominal frequency 50/60Hz
Voltage Range 165VAC-275VAC(±5VAC)
Frequency Range 40-70Hz
Voltage Regulation 220/230/240VAC±2%
Frequency Regulation Battery model:50/60Hz±0.1Hz AC model:Auto sense
Wave form Modified sine wave
Switch time <10ms(Typical 5ms)
Battery type and number











LED Display AC, Battery, Load, Over-load, Fault, etc
Communication port RS232 port, USB port(Optional)
Operating Environment
Temperature 0℃~40℃
Humidity 5%~95%(<40℃, no condensation.)
Storage Temperature -25℃~55℃
Elevation Less than 1500 meter
Noise (within 1 meter) <45dB
Weight(KG) Net weight 6 6.5 9.6 9.7 9.8
Gross weight 8 8.5 11.6 11.7 11.8
Dimension: WXDXH mm 330×100×140mm 405×205×145mm
