Unbalanced Loads Modular UPS Uninterrupted Power Supply 200KVA 380VAC PF >0.99

Minimum Order Quantity : 1pcs Price : 1-10000 USD
Packaging Details : Wooden Packing Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: MPS9335C 10-300KVA Modular UPS

Detail Information

Modular UPS: 10-300KVA Type: High Frequency Online UPS
Phase: Three Phase Efficiency: >96% At 50%~75% Loads
Online Capacity Extension: Support Protection: Unbalanced Loads
Input Voltage: 380/400/415VAC 3-phase 4-wire Bypass Voltage: 240vdc
Transfer Time: 0ms Waveform: Pure Sine Wave
Remote Control: RS232,RS485,SNMP Card Frequency: 50/60HZ
Output Power Factor: 1.0 Parallel Working: Max 4pcs Modular UPS
Hot-swappable: Power Modular Structure Application: Telecom
High Light:

backup power supply


ups power supply

Product Description


Unbalanced Loads Modular UPS Uninterrupted Power Supply 200KVA 380VAC PF >0.99



Quick Detailes:


MPS9335C series power system structure is extremely flexible ,the concept of power modular designing can be easily remove at runtime and installed without affecting system operation and output ,implement investment planning with the need to expand,allowing users to achieve dynamic growth with business saves customers’ costs for innitial equipment purchasing and future expansion,When users estimated UPScapacity,often underestimated or high expected,MPS9335C series power can solve above the problems effectively,help usera to carry out construction and investment in phase under the condition that fututure development direction is not clear.When users want to add loads to the UPS,only adding the required number of modules  for expansion.

Model MPS9335C Series High Frequency Online UPS-Modular UPS
Phase  3Ph in/3Ph out
Capacity 10kva-300kva
Technology Advanced DSP Full Digital Control + Distributed Active Parallel technolgy
Parallel Mode N+X Modular Design with Full Upgrade protection
Hot-swappable Modular Structure Easy to move at runtime
Backup Time it depend on the load capacity
Battery 12V Battery 30~40pcs can be choose
Communication Ports RS232,RS485,SNMP card,ECO,generator port
Application Data Center,Computer Center,Telecom,Finance bank ,Tax,Hospital system,industrial .etc




Key Features:


  • Superior energy saving and environment-friendly:

Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%


  • Superior capability of powering load:

Output PF is 0.9, no need of power deration with load of leading or lagging PF


  • Easy-to-install:

Top or bottom cabling, no need of input cabling cabinet.


  • Easy-to-maintain:

Full front access, UPS, failed part can be replaced shortly


  • Easy-to-modify:

The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.


  •  6-inch extra large LCD that can display 12 language ( Chinese,English , Russian , Spanish , French and so on )
  •  Provide large LCD touch screen(optional)
  • Each UPS module provide 4.5kw charge capacity,equivalent to 10 to 12A
  • Advanced distributed active parallel technology :

realizes  parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet

  • Advanced DSP full digital control technology:

Realize higher system stability,online capacity expansion and maintenance


  • Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
  • Intelligent battery management maintains battery automatically to prolong the battery life
  • The machine system for modular structure,consists of 1 to 10 modules’ biggest single module is 30kw

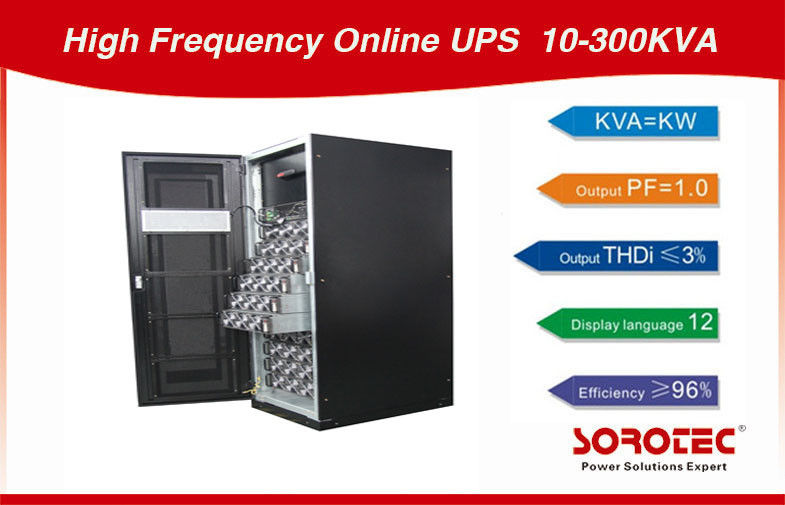

Unbalanced Loads Modular UPS Uninterrupted Power Supply 200KVA 380VAC PF >0.99 0

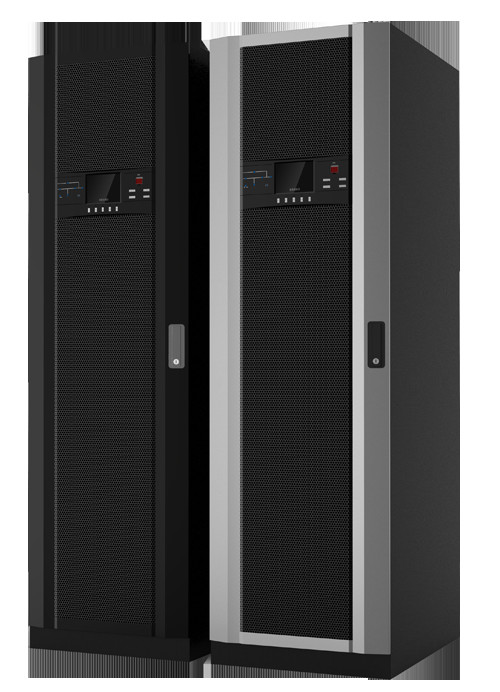

UPS Modules:

0.9 Power factor Can Display 12 Language Modular UPS 10-300KVA MPS9335C 0.9 Power factor Can Display 12 Language Modular UPS 10-300KVA MPS9335C





ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.



Technical Specifications of Modular UPS, MPS9335 10-300KVA:

Model MPS9335 10-300KVA
Capacity 10-300KVA
Main input
Input voltage 380V/400V/415AC(Optional South America 208v)
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0. 98
THDi THDi <3%
Input power soft-start fantion 5-30s settable
Input Voltage Ranges 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery Voltage ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy ± 1%
Bypass Input voltage 380/400/415VAC 3-phase 4-wire
Voltage Ranges Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ± 0.5%(balanced load), ± 1% (unbalanced load)
THDi THD<1%(linear load), THD<3%(nonlinear load)
Power Factor 0.9
Three Phase Angle accuracy 120°c ± 0.5°c
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms(ECO Mode)
Frequency 50Hz/60Hz (Settable)
Mains synchronization range ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Communication Ports RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency > 96% at load above 50%, >95% at load above 25%
Operation Temperature 0-40 °c
Storage Temperature -25 °c -70 °c (without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
  5 module cabinet module :RMS050/10, RMS100/20, RMS150/30 150KG
  10 module cabinet module :RMS100/10, RMS200/20, RMS300/30 150KG
  module :PM10 10KVA power module :20KG
Weight module :PM20 20KVA power module :21KG
  module :PM30 30KVA power module :32KG
Dimendion(W XD XH)mm 5 module cabinet 600X1400X850
10 module cabinet 600X2070X850
power module 440X132X660(10KVA/20KVA/30KVA)
