USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS uninterruped power supply ups | Price : | 1-1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for uninterrupted power supply ups | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS/Month for H |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9116C/HP9316C Plus 1-20KVA UPS |
|
Detail Information |
|||
| Product Name: | Uninterrupted Power Supply UPS | Capacity: | 10kva-20kva |
|---|---|---|---|
| UPS Phase: | 3Ph In/Ph Out | Power Factor: | 0.9 |
| Waveform: | Pure Sine Wave | Frequency: | 50/60HZ |
| Mainly Application: | Data Centre | Communication: | RS232,USB,SNMP |
| Highlight: | backup power supply,uninterruptable power supply |
||
Product Description

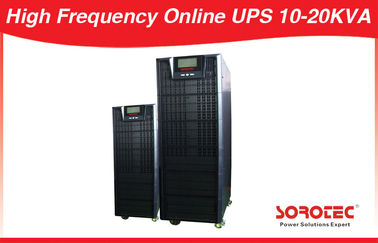

Power Factor 0.9 Data Center UPS Uninterrupted Power Supply Battery Backup 10kva 9kw
Typical applications:
Provide the reliable and long time backup uninterrupted power supply for Data centre, bank station, network,communication equipment,office,automatic equipment,monitor equipment, control system and so on precision equipments.
Key Features:
1. High frequency double conversion online ups
2. Digital control DSP technology
3. High output power factor 0.9
4. Support maximum 3 units for parallel running
5. Battery voltage optional and charge current adjustable
6. Support 3 phase input or 1phase input for three phase UPS
7. High efficiency low noise,small size and light-weight
8. Optional battery voltage depend on loads capacity
9. Wide input voltage and frequency range
10. Smart RS232(,USB,SNMP card optional)
11. Select trip technology can avoid and isolation system fault
12. Frequency conversion provides more stable output
13. High efficiency mode provide more economic operation
14. super wide input voltage and frequency range suitable for bad grid environment
Technical Parameters of High Frequency Online UPS HP9316C PLUS 10-20KVA
| Model | HP9116C/HP9316C 10-20KVA PLUS | ||||||
| 10KT-XL | 15KT-XL | 20KT-XL | |||||
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW | ||||
| Rated Voltage | 220VAC/380VAC 3phase with ground | ||||||
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) | ||||||
| Input | |||||||
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) | ||||||
| Power Factor | >0.95(Three phase) | ≥0.99 | |||||
| Output | |||||||
| Voltage Regulation | 208/220/230/240VAC (±1%) | ||||||
| Frequency Regulation | 50/60HZ±0.05 Hz | ||||||
| Power Factor | 0.9 | ||||||
| Voltage Distortion | Linear load＜2% ,Non-Linear load＜5% | ||||||
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms | ||||||
| Current Crest Ratio | 3:01 | ||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||
| Battery | |||||||
| DC Voltage | 192VDC | 192/216V/240VDC | |||||
| Recharge Current | 4A | 4A (8A optional) | |||||
| Display | |||||||
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. | ||||||
| Communication | |||||||
| Interface | Smart RS232,SNMP card (optional) USB (optional) | ||||||
| Environment | |||||||
| Operation Temperature | 0~40℃ | ||||||
| Humidity | 0~95% (Non-condensing) | ||||||
| Storage Temperature | -25℃~55℃ | ||||||
| Sea Level Elevation | ＜1500m | ||||||
| Noise Level (1m) | ＜55dB | ||||||
| Physics Characteristic | |||||||
| Weight(KG) | 16.9 | 31 | |||||
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 | |||||
Product Show:
