1-5kW On/Off Grid Hybrid Solar Inverter Built-in MPPT Solar Charge Controller

Minimum Order Quantity : 10PCS Price : 200-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000W

Detail Information

Model: 1-5kW Maximum PV Array Open Circuit Voltage: 145VDC
Nominal Output Voltage: 220/230/240VAC Output Voltage Range: 184-264.5VAC
Output Power Factor: >0.99 Maximum Conversion Efficiency (DC/AC): 90%
High Light:

mppt solar inverter

,

hybrid pv inverter

Product Description

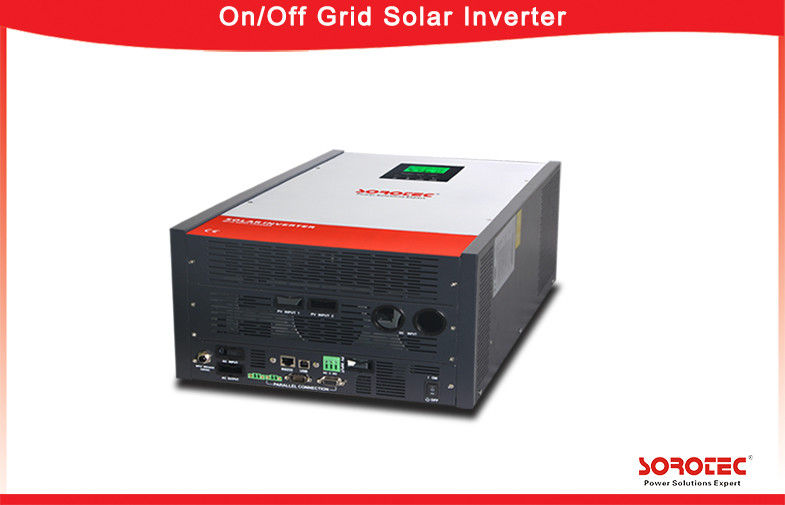

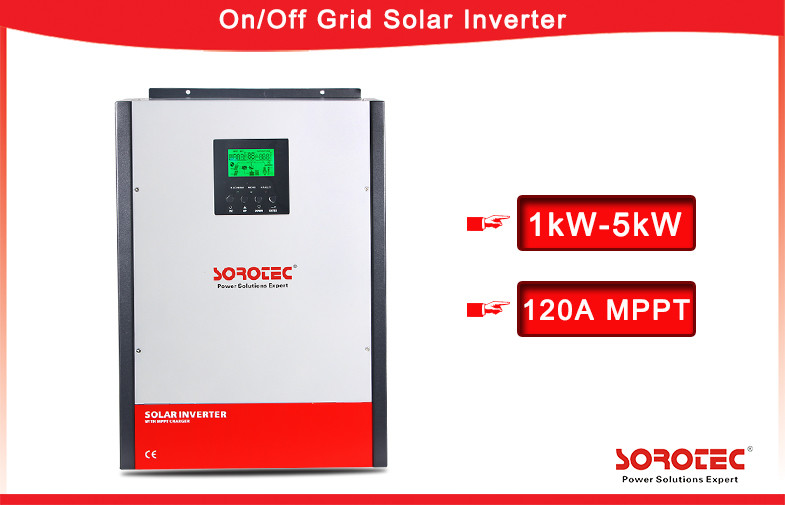

1-5kW On/Off Grid Hybrid Solar Power Inverter Built-in MPPT Solar Charge Controller



Product Description

    SOROTEC SSP3119C is a hybrid on-off grid solar power inverter provide long time backup ac power supply for self-consumption and extra power can be used to feedback to the local grid .it built-in MPPT solar charge controller and we also supply pv panel and battery pack solutions. 3-5kW with parallel function. User-adjustable charging current and voltage, Monitoring software for real-time status display and control, Parallel operation up to 6 units only for 3K/4K/5K models, widely used to supply the reliable long back up time power for the TV, Computer, DVD, VCD, Printing machines, Data center, Financial and Securities, Large Data rooms, Power tools, lawn mowers, vacuum cleaners, cameras and photographic equipment etc.



 Model  SSP3119C
 Capacity 1000-5000W
Nominal Frequency  50/60Hz
 Output Power Factor  >0.99
 Parallel Function  3kW/4kW/5kW
 Controller  Max.120A MPPT Solar Charge Controller



Key Features:



■Pure sine wave output

■Self-consumption and Feed-in to the grid

■Programmable supply priority for PV, Battery or Grid

■User-adjustable charging current and voltage

■Monitoring software for real-time status display and control

■Parallel operation up to 6 units only for 3K/4K/5K models

■Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



Application:

Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc



SSP3119C Wall Mounted Integrated Solar Power Inverter technical specifications:



MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃





1-5kW On/Off Grid Hybrid Solar Inverter Built-in MPPT Solar Charge Controller 0
