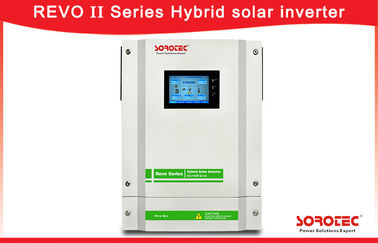

220 VAC Hybrid Solar Inverter / On Grid Solar Inverter With Battery Optional

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets.
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 1000PCS/Month for REVO Series Solar Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO II

Detail Information

Maximum Conversion Efficiency (DC/AC): Up To 93.5% MPPT Range @ Operating Voltage: 120-450VDC
Nominal Output Current: 15A Parallel Function: Yes
Maximum AC Input Current: 60A Maximum Solar Charge Current: 90A
Max PV Array Power: 5000W Nominal Output Voltage: 220/230/240VAC
High Light:

hybrid pv inverter

,

grid hybrid solar power inverter

Product Description

Wide PV Input Range 120-450VDC Solar Power Inverters 220VAC with Battery Optional

Key Features:



1.Touch screen display.
2.PV and utility power take the load at same time(can setting).
3.Output power factor PF=1.0.
4.On&Off Grid with energy storage.
5.Energy generated record,load record,history information and fault record.
6.Language and time setting.
7.Structure with dust filter.
8.AC charging and AC output time setting.
9.Charging voltage and charging current timing.
10.External Wi-Fi device optional.
11.Parallel operation up to 12 units .
12.Connected with battery optional.
13.Wide PV input range 120-450VDC.
14.Independent CPU.
15.MAX PV Array power 5000W.
16.Solar and Utility supply power to the load when solar power is not sufficient to load.




Product Show:

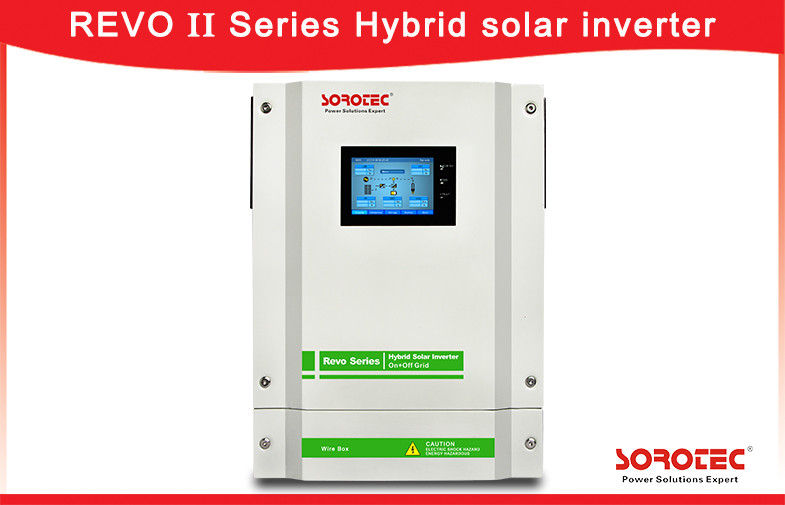

220 VAC Hybrid Solar Inverter / On Grid Solar Inverter With Battery Optional 0

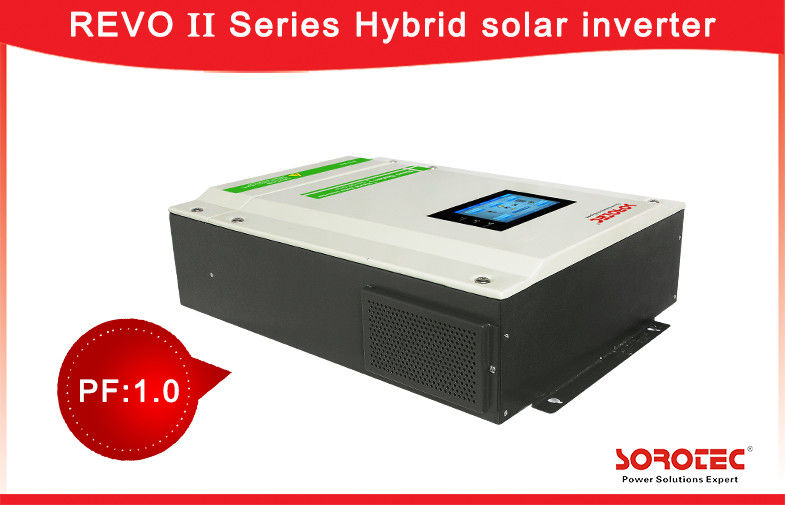

220 VAC Hybrid Solar Inverter / On Grid Solar Inverter With Battery Optional 1


Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller







MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 5000W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
APPLICATION OF OUR PRODUCT



1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.



          SOROTEC Three Main Products






WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
