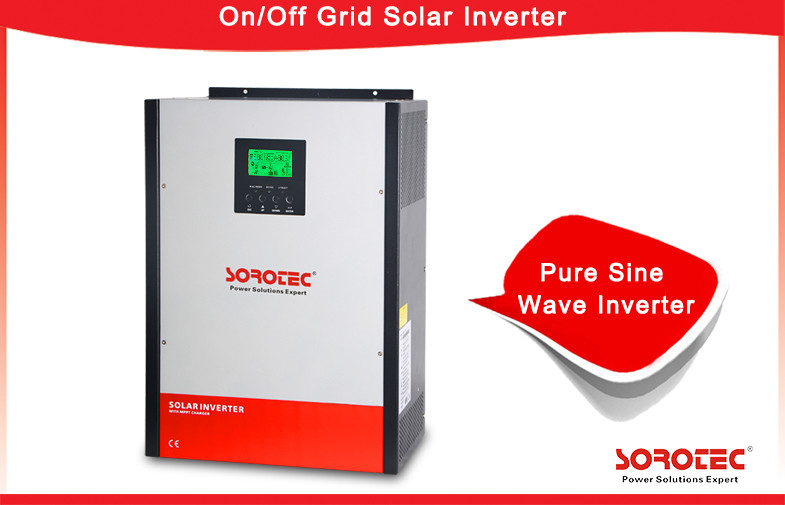

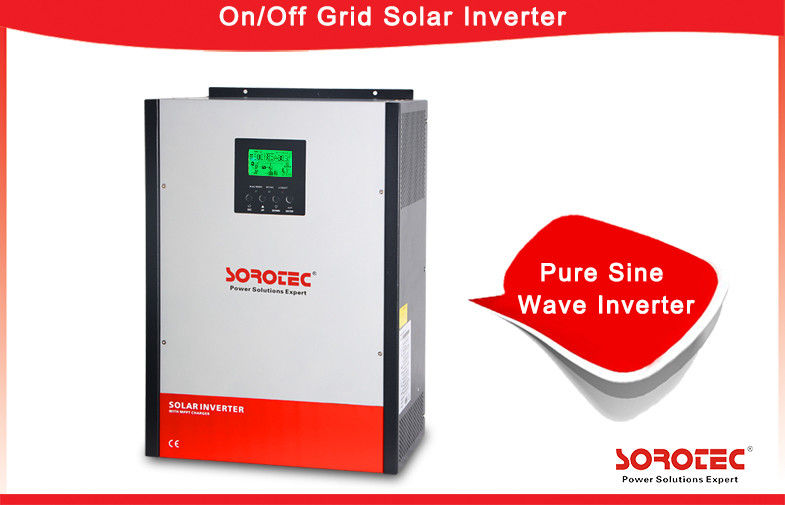

5kW Hybrid Solar Energy Storage Inverters with 120A MPPT Solar Charge Controller

Minimum Order Quantity : 10PCS Price : 200-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000W

Detail Information

Model: 1-5kW MPPT Range @ Operating Voltage: 60~115VDC
Nominal Output Current: 21.7A Accepatable Input Voltage Range: 90-280VAC Or 170-280VAC
Frequency Range: 50HZ/60HZ(Auto Sensing) Maximum AC Input Current: 40A
High Light:

mppt solar inverter

,

hybrid pv inverter

Product Description

5kW Hybrid Solar Energy Storage Inverters with 120A MPPT Solar Charge Controller



Key Features:

1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage

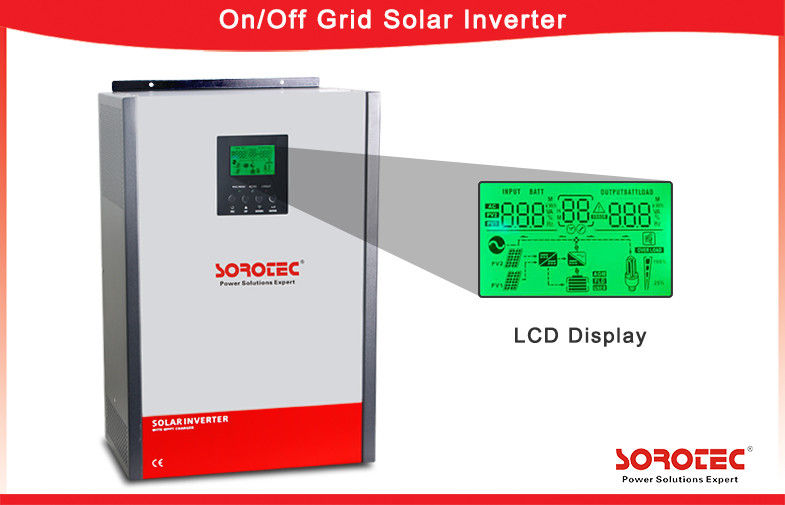

5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



Application:

Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc



Protection:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.



SSP3119C Wall Mounted Integrated Solar Power Inverter technical specifications:



MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃







SOROTEC All the Inverter Series :



modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter






APPLICATION OF OUR PRODUCT



1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.





COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.




FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
