LCD Display 1kva 12v smart hybrid inverter with MPPT Solar Charge Controller

Minimum Order Quantity : 1PCS Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product: Hybrid Inverter/On Grid/Off Grid Solar Inverter Capacity: 1KVA/1000W
Solar Charge Controller: 12V MPPT Nominal Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave Parallel Working: 6 PCS
Charging/Discharging Time: Selected Priority: PV/Battery/Grid
Application: Self-consumption Or Feed-in To The Grid Display: LCD
High Light:

grid hybrid solar power inverter

,

hybrid pv inverter

Product Description

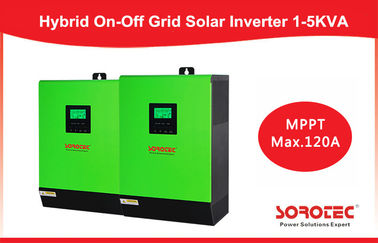

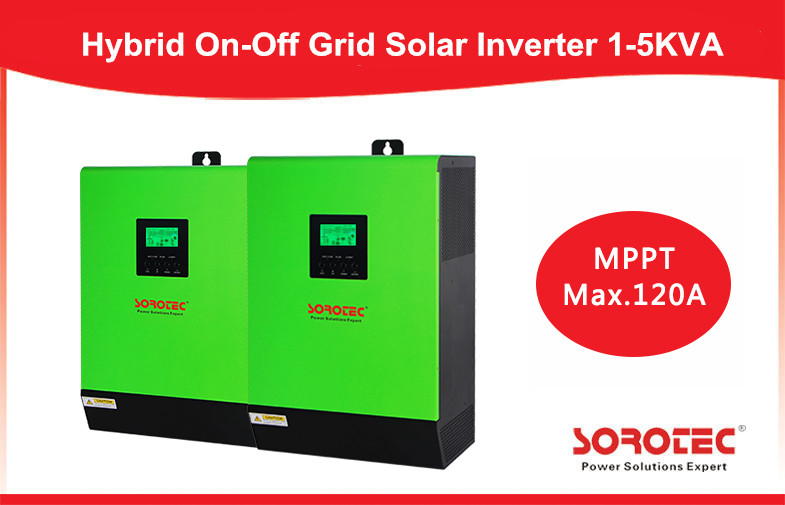

LCD Display 1kva 12v Solar Power Inverters with MPPT Solar Charge Controller





Typical Application:

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc





Key Features:

  • Discharging /Charging Time can be selected
  • For Self-consumption and Feed-back to the Grid
  • Parallel operation up to 6 units from 3KVA
  • Energy Storage Function with Battery Pack
  • High Frequency Pure Sine Wave Output
  • Power Supply Priority for PV ,Battery or Grid
  • Users-Adjustable Charging current and voltage
  • Built-in 80A/120A MPPT Solar Charge Controller
  • Multiple operation modes:Grid-tie,off-grid and grid-tie with backup



Protection Function:

Low battery voltage/Over load/Output short circuit /Over- temperature,

Restrain surge interference/Eliminate noise/Protection for thunder striking,

provide the reliable power to the home appliances.





SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50
