On Off Gird Hybrid Inverter Connected with Battery for Office Appliances 5.5kw

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO-E

Detail Information

Capacity: 3-5.5kW Frequency Range: 50Hz/60Hz (Auto Sensing)
Nominal Output Voltage: 220/230/240VAC Nominal Output Current: 15A
Name: 5500W On/Off Gird Hybrid Inverter Operating Temperature: 0 To 50°C
High Light:

mppt solar inverter

,

hybrid pv inverter

Product Description

On Off Gird Hybrid Inverter Connected with Battery for Office Appliances 5.5kw 05500W On/Off Gird Hybrid Inverter Connected with Battery Optional for Office Appliances


Key Features:



1.On&Off Grid
2.PV and utility power take the load at same time (can setting)
3.Output power factor PF=1.0
4.AC charging and AC output time setting
5.Charging voltage and charging current timing
6.External Wi-Fi device potional
7.Connected with battery optional
8.Wide PV Input Range(120-450VDC)

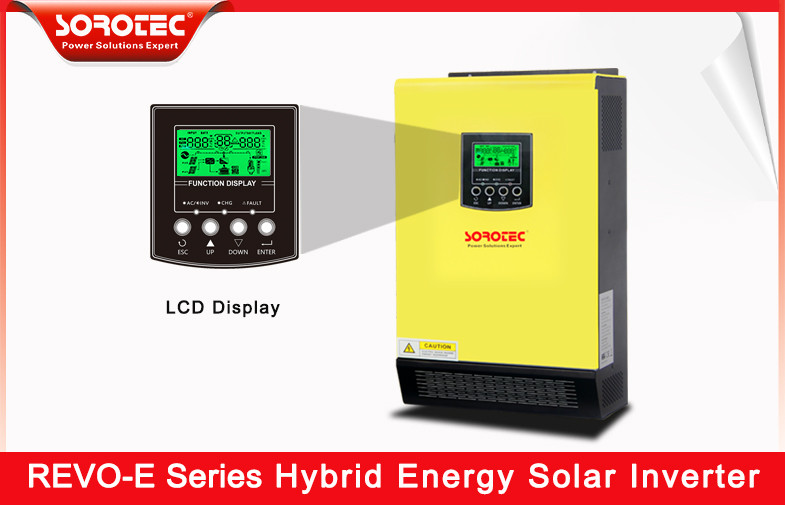

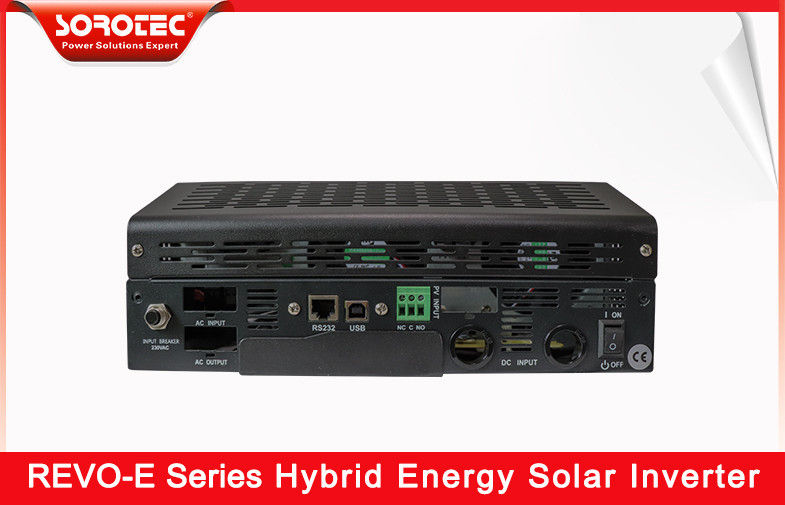

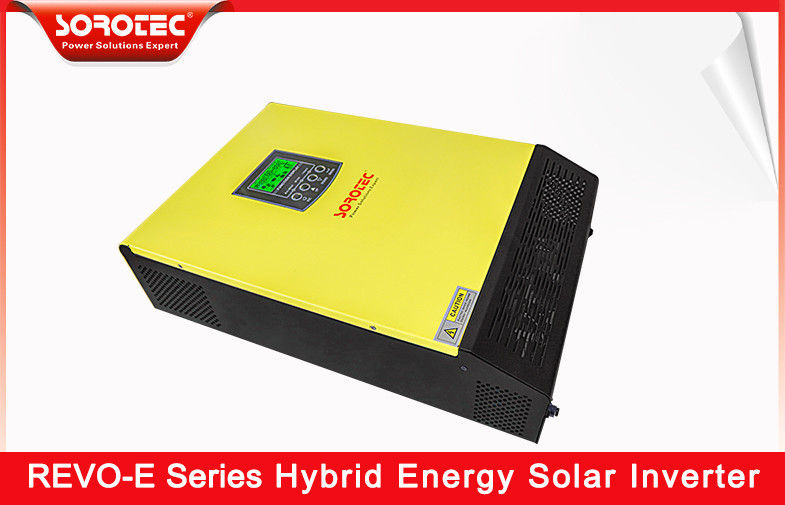

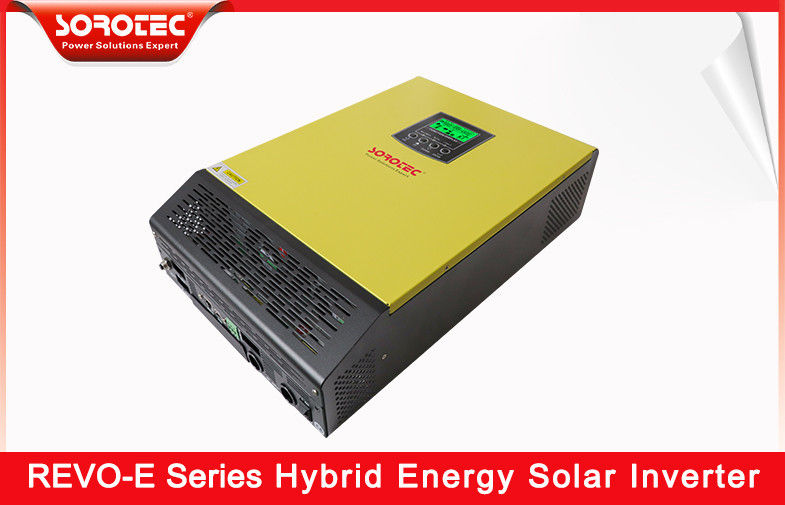

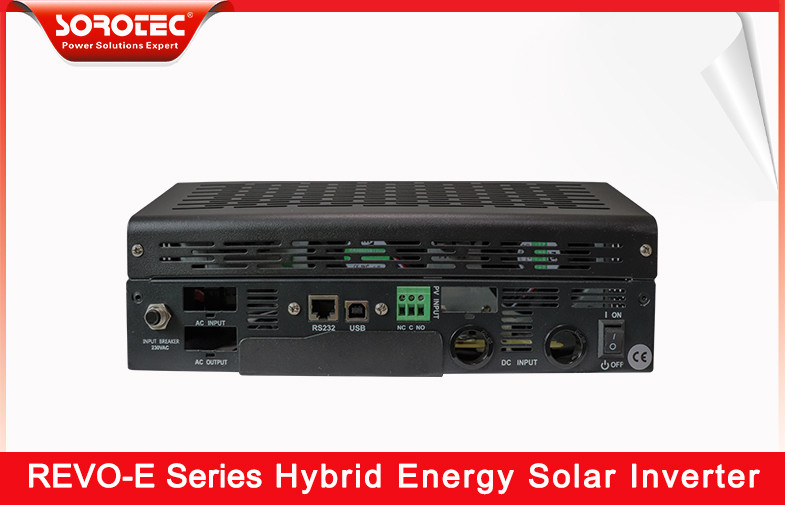

Product Show:

On Off Gird Hybrid Inverter Connected with Battery for Office Appliances 5.5kw 1

Application:

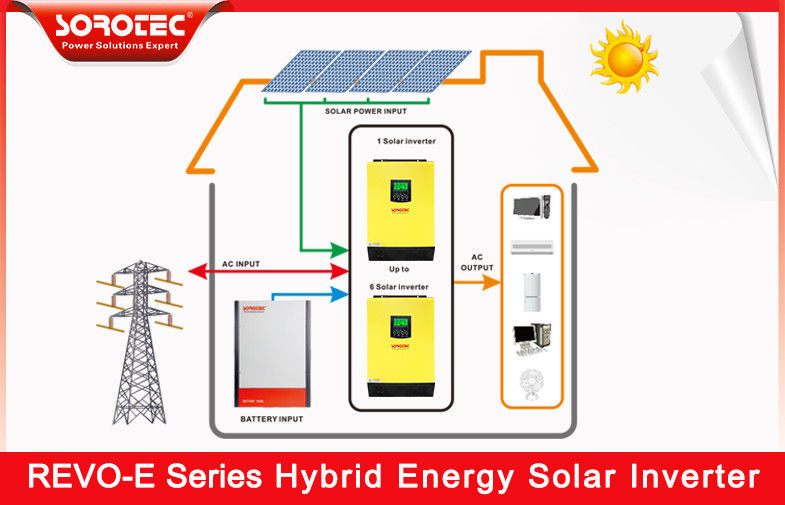

REVO-E Series Hybrid Solar Inverter supply the reliable long back up time power for household appliances, office appliances and solar power systems, it mainly used for solar power station and wind solar generating system etc.



Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 13.6A/13.0A/12.5A 14.5A/13.9A/13.3A 25A/23.9A/22.9A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Surge Power 6000W 6400W 11000W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
Net Weight(KG) 11.75 11.9
Rough Weight(KG) 12.75 13.1
Dimension (W x D x H)mm 345x476x133.2


SOROTEC All the Inverter Series :

modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter




Trade Show:

On Off Gird Hybrid Inverter Connected with Battery for Office Appliances 5.5kw 8

FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................

3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
