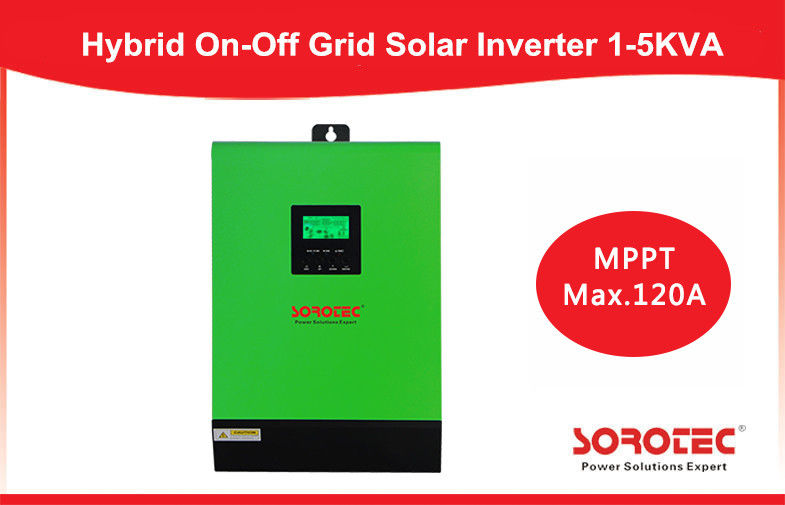

On / off Grid Hybrid solar energy inverter 4kva 4000w with 80A MPPT Controller

Minimum Order Quantity : 1PCS Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product Name: On Off Grid Hybrid Solar Inverters Output Power: 4KVA/4000W
Efficiency: 93% (DC To AC) Solar Charge Controller: 80A MPPT
Waveform: Pure Sine Wave Input Voltage: 90-280VAC
Output Voltage: 220VAC Input Phase: Single Or Three
Application: Personal Computer Maximum Charge Current: 140A
High Light:

grid hybrid solar power inverter

,

hybrid pv inverter

Product Description

On / off Grid Hybrid solar energy inverter 4kva 4000w with 80A MPPT Controller



Hybrid Solar Inverter Quick Detailes



1 .On-Off Grid Hybrid Solar Power Inverter

2. High Frequency Pure Sine Wave Output

3. Parallel Function for 3KVA/4KVA/5KVA

4. Power Supply from PV/Battery/Grid

5. Inbuilt 80A/120A MPPT Solar Charge Controller

6.LCD Display  the Load,PV,Grid and Battery Detaile in Real-time



Hybrid Solar Inverter Key Features



1.  Parallel  operation up to 6 units only for  3KVA-5KVA



2.  Power Supply for Self-consumption and Feed-back to the grid



3.  Programmable supply priority for PV, Battery or Grid



4.  Adjustable Charging current and voltage for Users



5.  Multi-communications port :RS232/USB/Dry -Contact



6.  Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



.







SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50

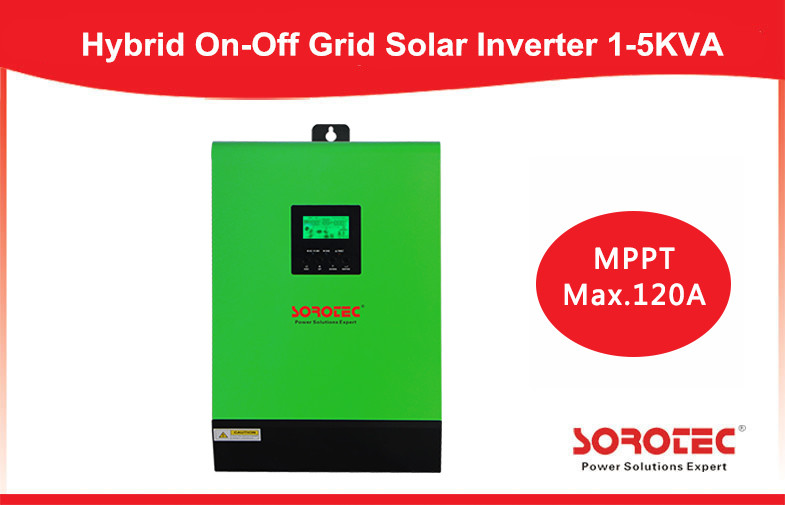

On / off Grid Hybrid solar energy inverter 4kva 4000w with 80A MPPT Controller 0




Protection Function

-Low battery voltage

-Over load

-Output short circuit

-Over- temperature

-Restrain surge interference,

-Eliminate noise

-Protection for thunder striking,provide the reliable power to the home appliances.





Typical Application

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc
