On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional

China On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional supplier
On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional supplier On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional supplier

Large Image :  On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: REVO II 3-5.5KW

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets.
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Contact Now
Detailed Product Description
MODEL: 3-5.5KW Maximum AC Charge Current: 60A
Maximum Charge Current: 90A Efficiency (DC To AC): Up To 93.5%
Maximum PV Array Open Circuit Voltage: 500VDC Acceptable Input Voltage Range: 90-280VAC Or 170-280 VAC

3-5.5kW Built-in with Battery Optional On/Off Gird Hybrid Solar Inverter of PF=1.0





Key Features:



1.Touch screen display
2.PV and utility power take the load at same time(can setting)
3.Output power factor PF=1.0
4.On&Off Grid with energy storage
5.Energy generated record,load record,history information and fault record
6.Language and time setting
7.Structure with dust filter
8.AC charging and AC output time setting
9.Charging voltage and charging current timing
10.External Wi-Fi device optional
11.Parallel operation  up to 12 units
12.Connected with battery optional
13.Wide PV input range 120-450VDC
14.Independent CPU
15.MAX PV Array power 5000W
16.Solar and Utility supply power to the load when solar power is not sufficient to load

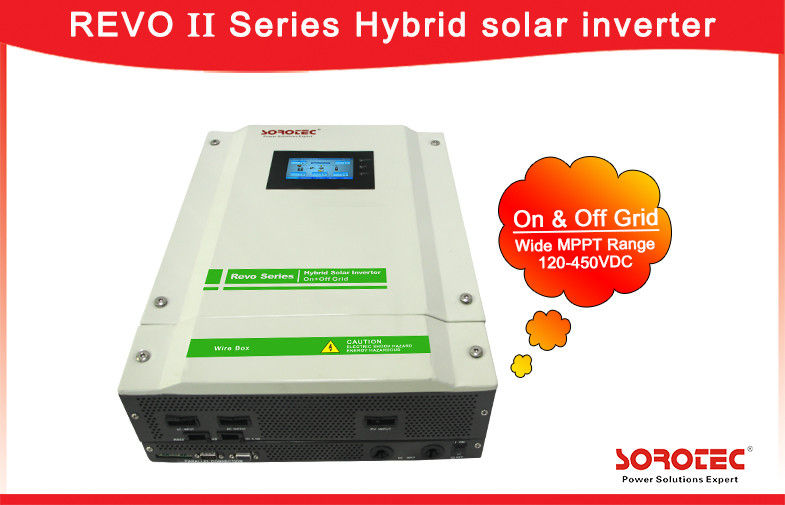

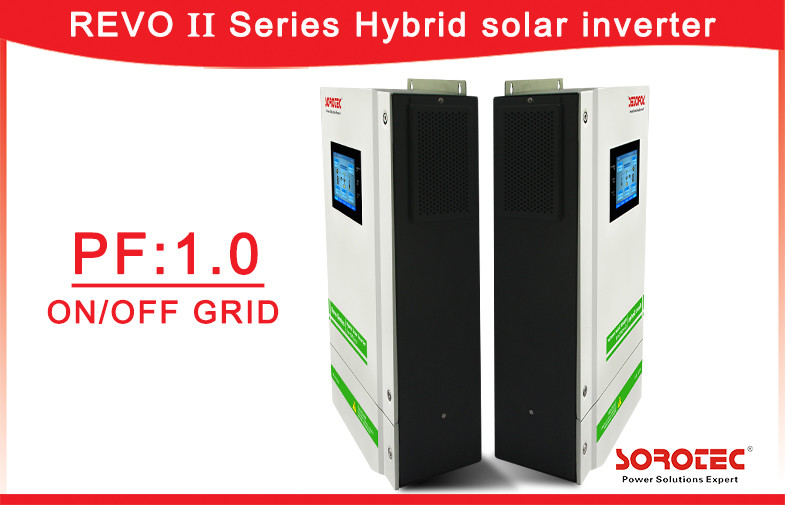

Product Show:

On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional



On / Off Gird Hybrid Solar Inverter of PF=1.0 3-5.5kW Built-in with Battery Optional


Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 5000W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
