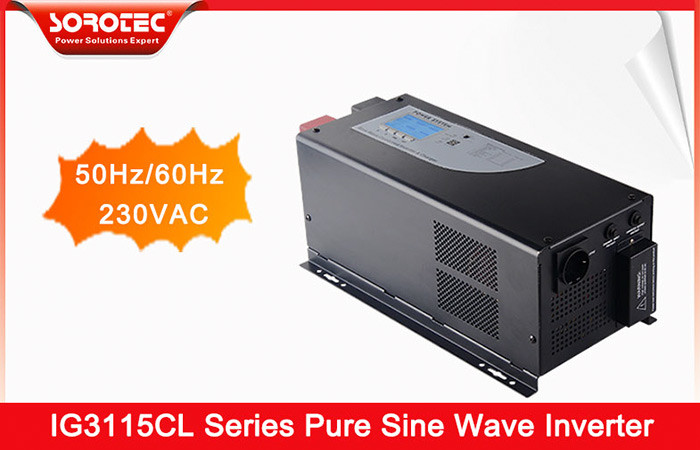

Black Hybrid Solar Inverter with Battery Type 6000W Pure Sine Wave 50Hz / 60Hz

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Supply Ability : 1000PCS/Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: IG3115CL

Detail Information

Efficiency On Line Transfer Mode: ≥95%+ Nominal Input Voltage: 12V/24V/48V
Safety Certification: >88% Charger Curves(4stage Constant: Battery Types
Charge Current: 0-85A MAX Remote Control/RS232/USB: Yes. Optional

Product Description

6000W Pure Sine Wave 50Hz/60Hz Hybrid Solar Power Inverters with Battery Type Can be Selected



Key Features:

1. Connect to generator restart function

2. Automatically transfer between battery and line modes

3. Output power factor is 0.9-1

4. Bypass function



IG3115CL Hybrid Solar Specifications:

MODEL IG3115CL 1-6KW Pure Sine wave Output Inverter
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Input Wave form Sine wave (utility or generator)
Nominal Voltage 230Vac (120Vac optional)
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage re engage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage re engage 135v ±4% & 243v±4%
Nominal Input Frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz~65Hz
Output Wave form (Bypass mode)same as input
Efficiency on line transfer mode ≥95%+
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter specification/output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000
Output continuos power VA 1000 1500 2000 3000 4000 5000 6000
Power factor 0.9-1.0
Nominal Output Voltage rms 230Vac (120Vac optional)
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification >88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000
Short circuit protection Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage 12V/24V/48V
Minimum start voltage 10V/20V/40V
Low battery alarm 10.5V/21V/42V
Low battery trip 10V/20V/40V
High voltage alarm 16V/32V/64V
Power saver Same switched on/off on remote
Charger mode specification
Output voltage Dependent on battery type
Charge current 0-85A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Over charge protection shutdown 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Charger curves(4stage constant curren) battery types
4 step digital controlled progressive charge
Battery type Fast V Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A 14.0 13.7
A.G.M. 1 14.1 13.4
A.G.M. 2 14.6 13.7
Sealed lead acid 14.4 13.6
Gel euro 14.4 13.8
Open lead acid 14.8 13.3
Calcium 15.1 13.6
De-sulphation 15.5 for 4 hrs

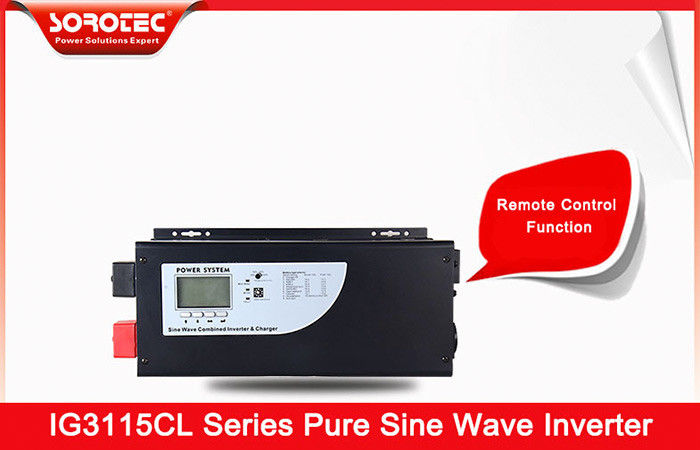

Remote control/RS232/USB Yes. Optional
