120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range

China 120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range supplier
120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range supplier 120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range supplier 120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range supplier

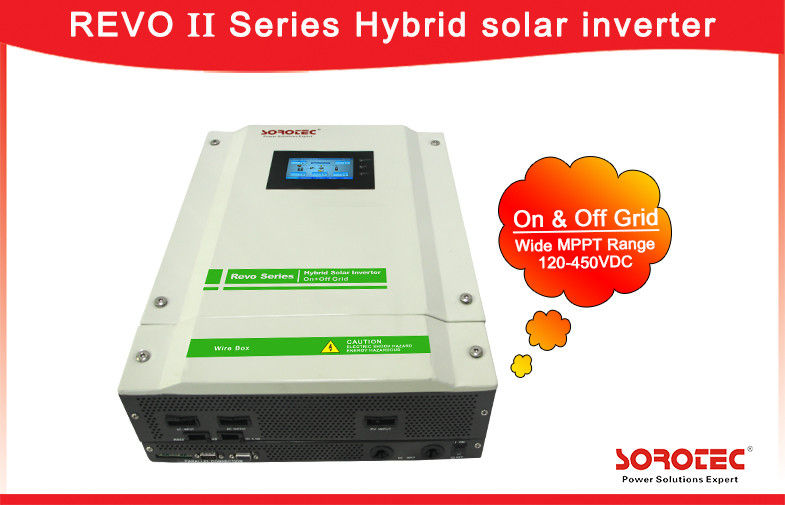

Large Image :  120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: REVO II

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets.
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Contact Now
Detailed Product Description
Maximum AC Input Current: 60A Max PV Array Power: 4500W
Nominal DC Voltage: 48VDC MPPT Range @ Operating Voltage: 120-450VDC
Maximum Conversion Efficiency (DC/AC): Up To 93.5% Nominal Output Voltage: 220/230/240VAC
Operating Temperature: 0 To 50 °C Output Wave Form: Pure Sine Wave

Pure Sine Wave Wide PV Input Range 120-450VDC Solar Hybrid Power Inverters with Battery Connected

Key Features:



1.Touch screen display.
2.PV and utility power take the load at same time(can setting).
3.Output power factor PF=1.0.
4.On&Off Grid with energy storage.
5.Energy generated record,load record,history information and fault record.
6.Language and time setting.
7.Structure with dust filter.
8.AC charging and AC output time setting.
9.Charging voltage and charging current timing.
10.External Wi-Fi device optional.
11.Parallel operation with up to 6 units only available for 3kW/3.2kW/5.5kW.
12.Connected with battery optional.
13.Wide PV input range 120-450VDC.
14.Independent CPU.
15.MAX PV Array power 4500W.
16.Solar and Utility supply power to the load when solar power is not sufficient to load.


120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range

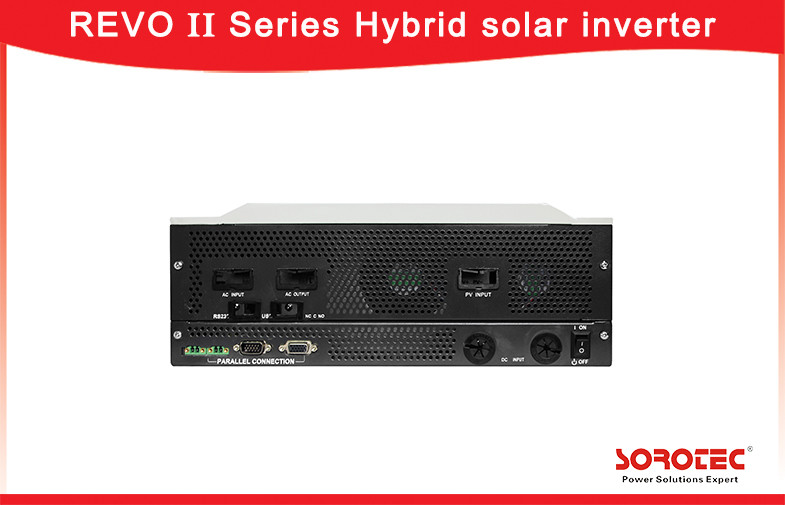

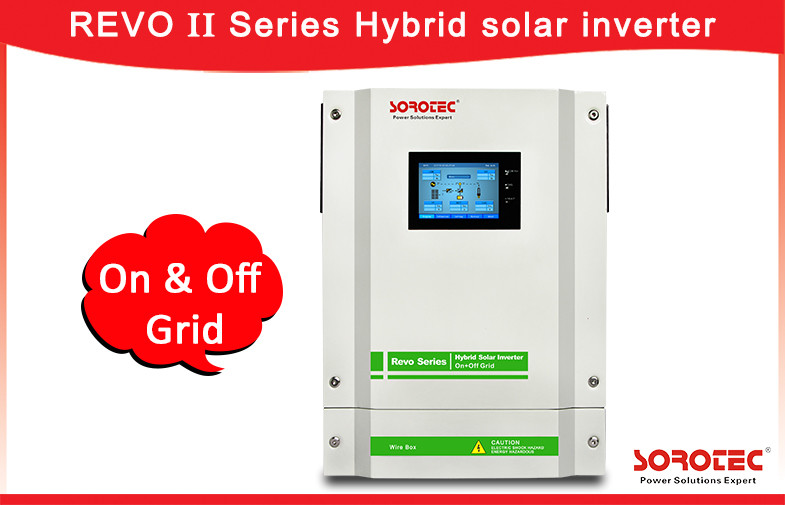

Product Show:
120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range

120 - 450 VDC Solar Hybrid Power Inverters Pure Sine Wave Wide PV Input Range

Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller





MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <10ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C

FACTORY SHOW


Factoy View.jpg

FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.



.......................................................................................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.



........................................................................................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.



.....................................................................................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:



Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)



.......................................................................................................................................................................................................................................
