Solar Power Hybrid Pure Sine Wave Inverter 3KW With Wide Input Range 120-450VDC

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO-E

Detail Information

Capacity: 3-5.5kW Name: 3KW Solar Power Inverters
Nominal Output Current: 15A Output Voltage: 220/230/240VAC
Max PV Array Power: 4500W Max Charge Current: Up To 90A
Efficiency: Up To 93.5%
High Light:

grid hybrid solar power inverter

,

hybrid pv inverter

Product Description

3KW Solar Power Inverters With Wide Input Range 120-450VDC
Product Snapshot:

1.Model: 3-5.5kW

2.Nominal Voltage: 220/230/240VAC

3. Frequency Range: 50/60Hz

4. MPPT Solar Charge Controller: 90A

5. Output Power Factor: PF=1.0
Key Features:

1.On&Off Grid
2.PV and utility power take the load at same time (can setting)
3.Output power factor PF=1.0
4.AC charging and AC output time setting
5.Charging voltage and charging current timing
6.External Wi-Fi device potional
7.Connected with battery optional
8.Wide PV Input Range(120-450VDC)



Product Show:

Solar Power Hybrid Pure Sine Wave Inverter 3KW With Wide Input Range 120-450VDC 0
Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 13.6A/13.0A/12.5A 14.5A/13.9A/13.3A 25A/23.9A/22.9A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Surge Power 6000W 6400W 11000W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
Net Weight(KG) 11.75 11.9
Rough Weight(KG) 12.75 13.1
Dimension (W x D x H)mm 345x476x133.2

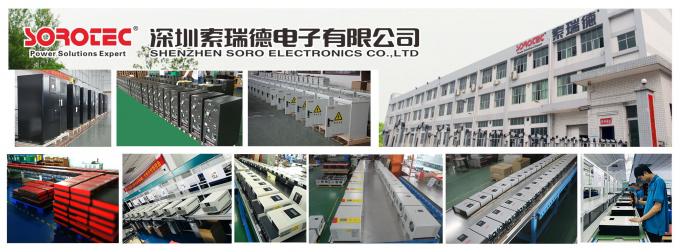

FACTORY SHOW


Solar Power Hybrid Pure Sine Wave Inverter 3KW With Wide Input Range 120-450VDC 1


WHY CHOOSE US ?


1.QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2.Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.



FAQ


Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: Shipped in 30 days after payment.

Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
