LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid

China LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid supplier

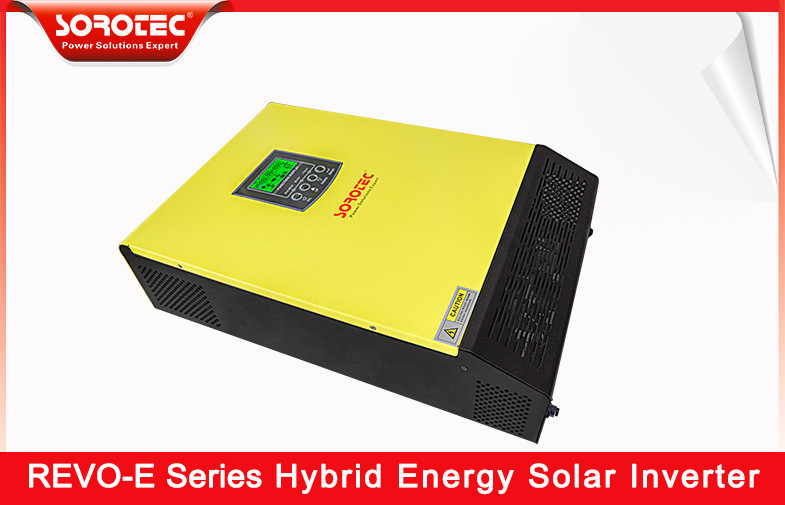

Large Image :  LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: REVO-E

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets.
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Contact Now
Detailed Product Description
Max PV Array Power: 4500W Output Voltage Range: 184-264.5VAC
MPPT Rrange Voltage: 120-450VDC Grid: On/Off Grid
Input Voltage Range: 90-280VAC /170-280 VAC Nominal Output Current: 15A
Out Power Factor: PF=1 Operating Temperature: 0 To 50 °C

3KW 3.2KW 5.5kW Pure Sine Wave Hybrid Power Inverter With LCD Display

REVO-E Series Hybrid Solar Power Inverter with wide PV input range 120-450VDC, hybrid operation connected with battery optional. On/Off grid solar power inverters with Wi-Fi device optional. Wide input PV voltage model without PV distribution cabinet, PV input wire connection is simple, input current also less than standard mode.

Key Features:
1.On&Off Grid
2.PV and utility power take the load at same time (can setting)
3.Output power factor PF=1.0
4.AC charging and AC output time setting
5.Charging voltage and charging current timing
6.External Wi-Fi device potional
7.Connected with battery optional
8.Wide PV Input Range(120-450VDC)


Product Show:

LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid
Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <10ms
GENERAL
INTERFACE
Parallel Function Optional
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C


LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid



Company Show

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.



 LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid





Application Of Our Products



LCD Display Hybrid Solar Inverter 3KW 3.2KW 5.5kW Pure Sine Wave On / Off Grid

1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.
